Outdoor Full Color P6 LED Billboard/Display Screen Panel for Advertising

Shenzhen Chuangkaiguang Co., Ltd.
  • Tube Chip Color：Full Color
  • IP Rating：IP65
  • Pixel Pitch：6mm
  • Pixel Configuration：1R, 1G, 1B
  • Display Function：Video Display
  • Average Power Consumption：300W,Sqm

Base Info

  • Model NO.：6mm
  • Pixel Density：27777dots,Sqm
  • Scanning Mode：1,8 Scan
  • Display Type：LED Video Display
  • Application：Advertising
  • Certification：CE, RoHS, CCC, ETL
  • Module Size：192X192mm
  • Module Resolution：32X32mm
  • Cabinet Size：768X768
  • Cabinet Resolution：128X128dots
  • Screen Brightness：4500nits
  • Protection Grade：IP65
  • Compliance：Ce
  • Service：Rear Service
  • Controller：Nova, Linsn
  • Transport Package：Wooden Case
  • Specification：768x768mm
  • Trademark：CKGLED
  • Origin：China
  • HS Code：8528591090
  • Production Capacity：6000sqm,Month

Description

NO.ItemParameters2Pixel Pitch(mm)63LED Configuration1R1G1B4LED TypeSMD35355Screen Resolution27777dots/sqm6Module size(mm)192x1927Module resolution(dots)32x328Scan method1/8 constant current drive9Cabinet size(mm)768x76810Cabinet resolution(dots)128x12811Cabinet materialIron / Aluminum12Brightness(cd/sqm)≥600013Viewing angleH:140°/ V:140°14Grey Scale14bit15Refresh rate(Hz)≥192016Ave. power consumption (W/sqm)30017Max. power consumption(W/sqm)90018IP gradeF:IP65 / R:IP5419ControllerNovastar / Linsn20MaintenanceRear service21Color(T)>28122Input Voltage(V)AC 110V-220V +/-10%23Frame frequency(Hz)6024Working humidity10~95%RH25Working temperature-30ºC~60ºC26CertificatesRoHS / CE / CCC

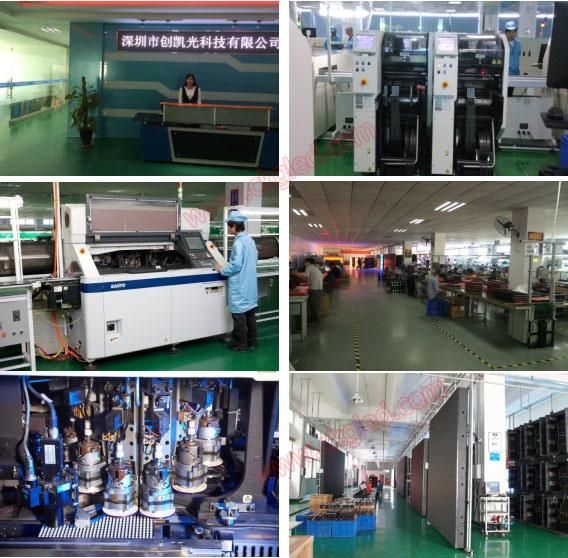

WORKSHOP:

Outdoor Full Color P6 LED Billboard/Display Screen Panel for Advertising

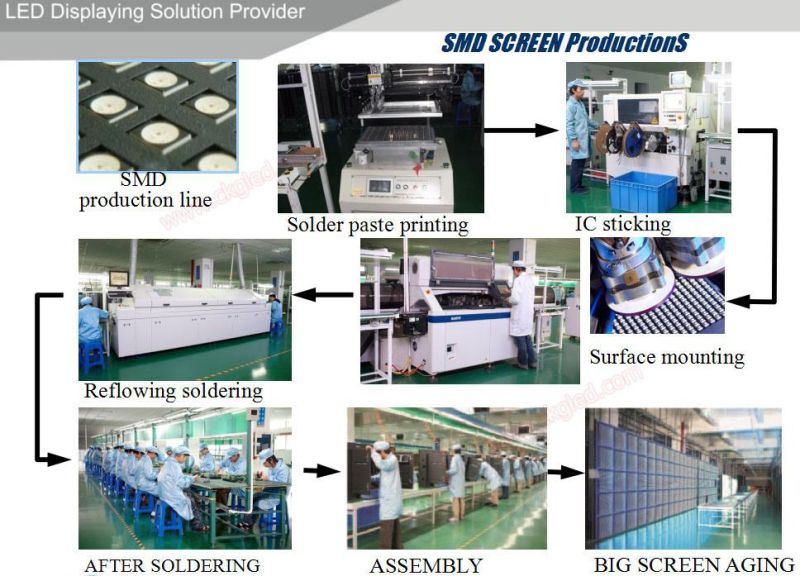

PROCESS:

Outdoor Full Color P6 LED Billboard/Display Screen Panel for Advertising

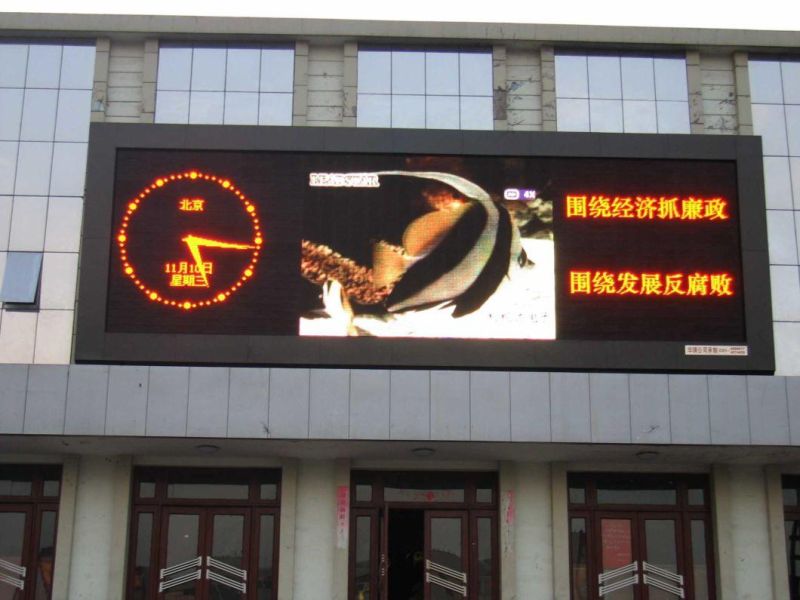

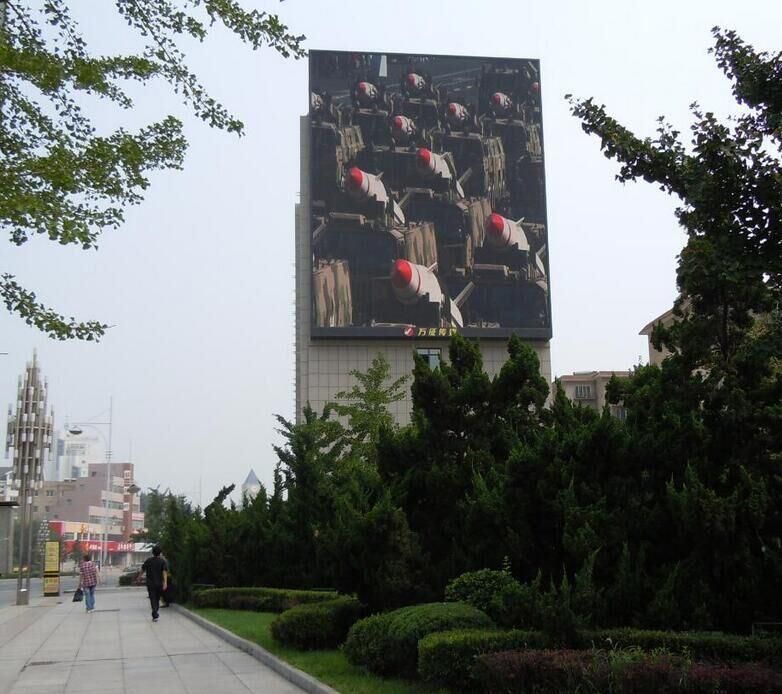

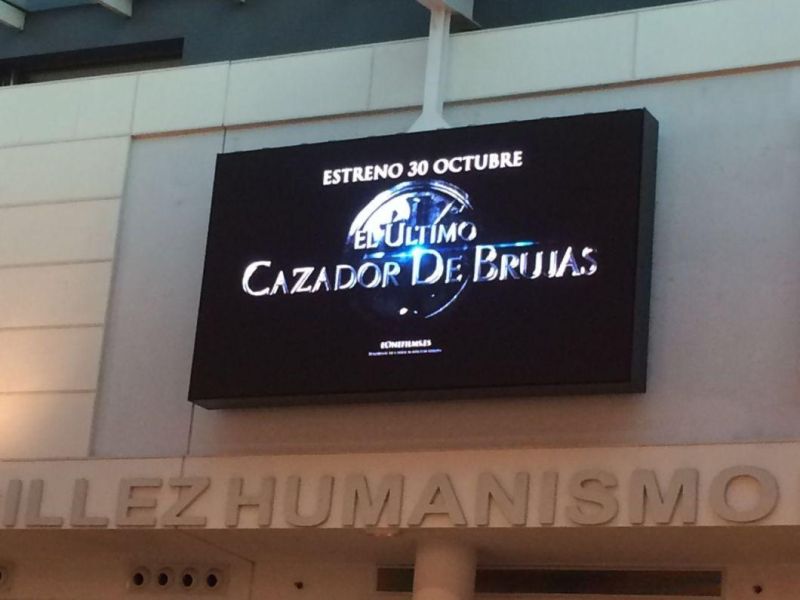

Product Photos:

Outdoor Full Color P6 LED Billboard/Display Screen Panel for Advertising
Outdoor Full Color P6 LED Billboard/Display Screen Panel for Advertising
Outdoor Full Color P6 LED Billboard/Display Screen Panel for Advertising

Outdoor Full Color P6 LED Billboard/Display Screen Panel for Advertising

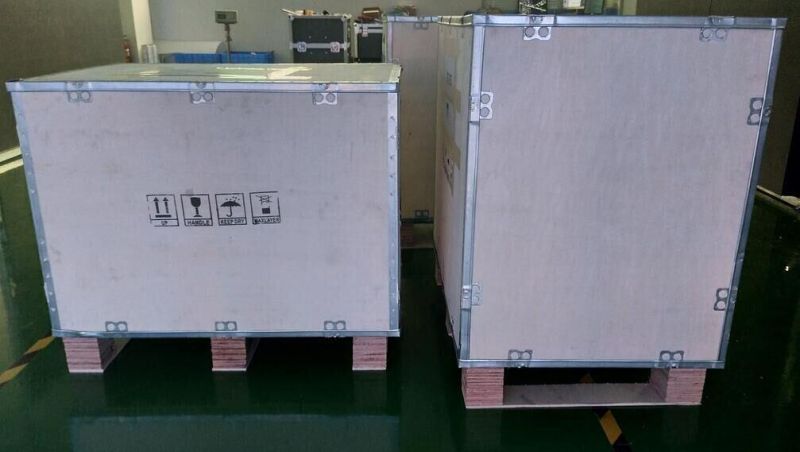

Package:

Outdoor Full Color P6 LED Billboard/Display Screen Panel for Advertising

Certificates:

Outdoor Full Color P6 LED Billboard/Display Screen Panel for Advertising



Our Services:


1.Provide free technology support by phone or email.


2.Training for 2 persons for installation and maintance in factory for 3 days.

3. Shipment must be arranged within 3months after order placed,otherwise, factory will have the right to resell the screen without  refunding the deposit, or there is warehouse safe-keeping fee of USD$100/day.
