• Model NO.：P3.91mm
• Pixel Density：65536dots
• Scanning Mode：1,16 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, UL, CCC, ETL
• Refresh Rate：1920~3840Hz
• Brightness：5000nits
• Screen Resolution：65536dots,Sqm
• Adjustable Angle：-15~+15
• Transport Package：Flight Case
• Specification：250*250mm
• Trademark：CKGLED
• Origin：China
• HS Code：8528591090
• Production Capacity：6000sqm,Month

Basic Info.

Model NO. P3.91mm Pixel Density 65536dots Scanning Mode 1/16 Scan Display Type LED Video Display Application Advertising Certification CE, RoHS, UL, CCC, ETL Refresh Rate 1920~3840Hz Brightness 5000nits Screen Resolution 65536dots/Sqm Adjustable Angle -15~+15 Transport Package Flight Case Specification 250*250mm Trademark CKGLED Origin China HS Code 8528591090 Production Capacity 6000sqm/Month

Product Description

PRODUCT FEATURES:
1.High waterproof grade design:IP65
2.500*500 and 500*1000mm cabinet size for your options
3.-15~+15 adjustable angle curved design
4.Support both of curved design and straight design

PRODUCT PARAMATERS:


NO.	Parameters	Specifications
1	Model	R3
2	Pixel Pitch(mm)	3.91
3	LED	SMD1921
4	Screen Resolution	65536dots/sqm
5	Scan Method	1/16
6	Module size(mm)	250*250
7	Cabinet size(L*H*W mm)	500x500x88/500x1000x88
8	Cabinet(Kg)	7.8
9	Viewing angle	H:160°/  V:160°
10	Grey Scale	14bit
11	Refresh rate(HZ)	≥1920
12	Brightness(nits)	≥5000
13	Working Voltage(V)	AC 100~240V
14	AVE. power consumption (W/m2)	230
15	MAX. power consumption(W/m2)	560
16	IP grade	F:IP65 / R:IP54
17	Controller	Novastar
18	Working humidity	10~95%RH
19	Storage humidity	10~95%RH
20	Working temperature	-30ºC~60ºC

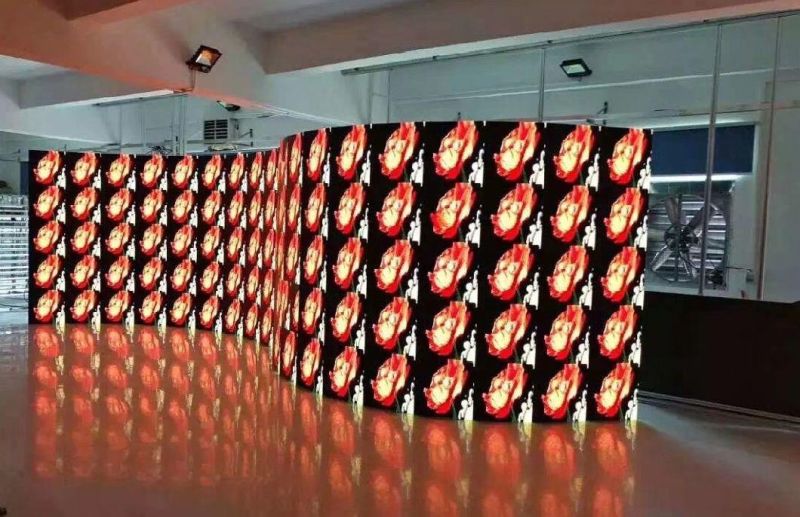

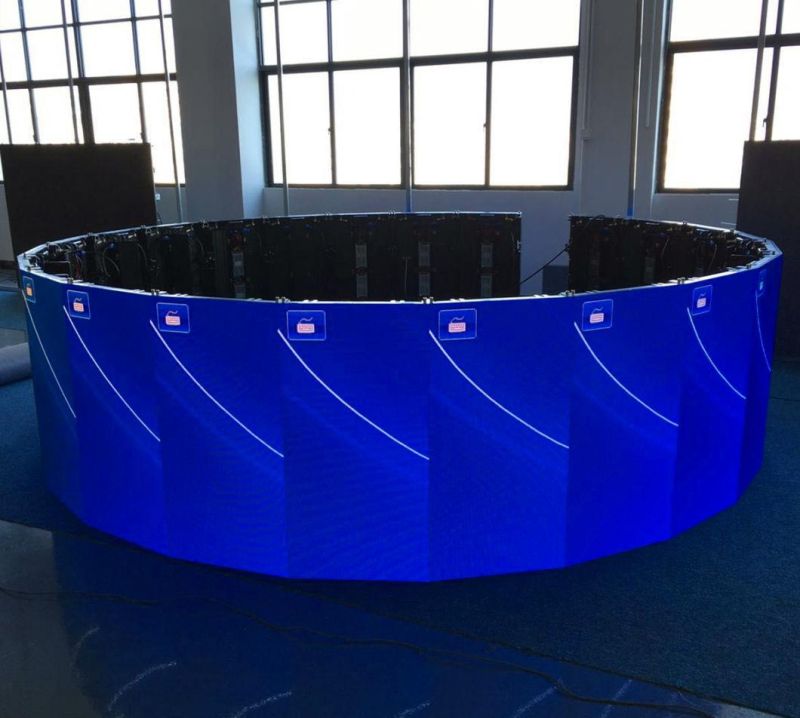

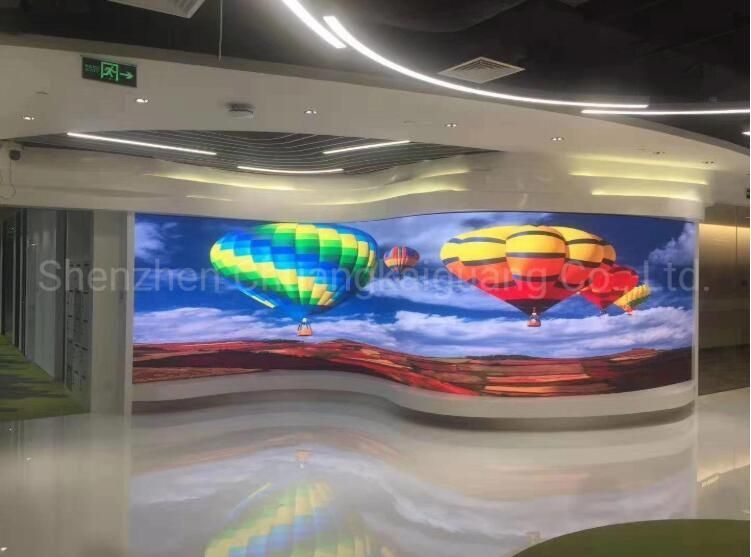

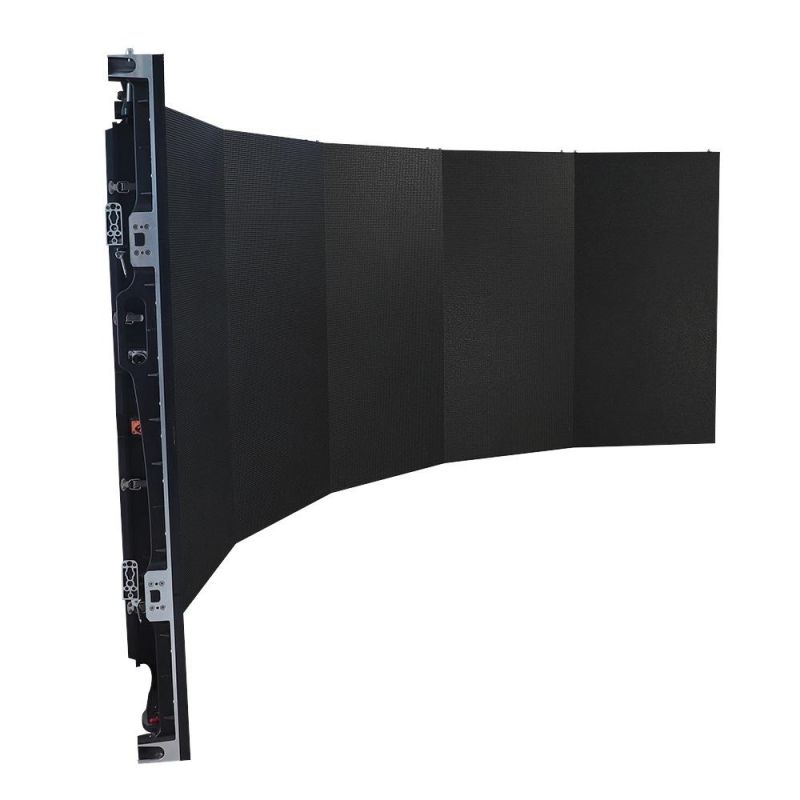

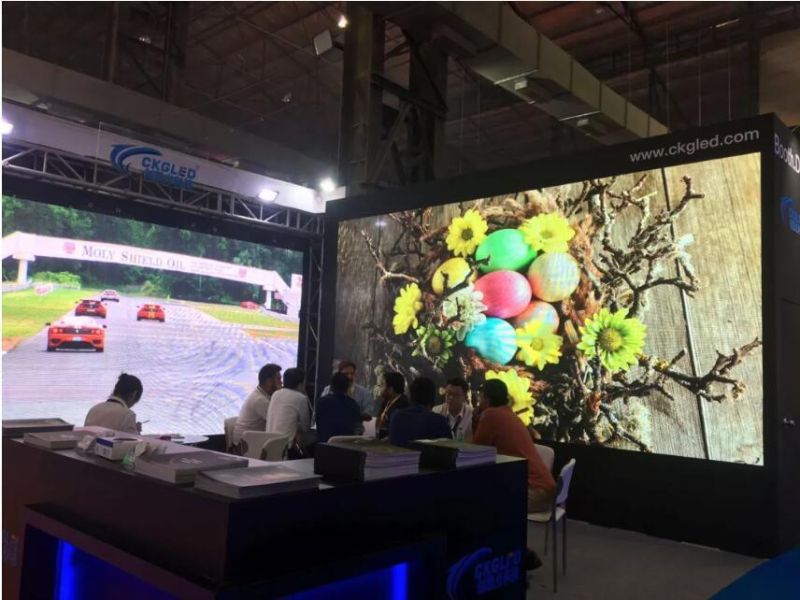

PRODUCT PHOPTOS:

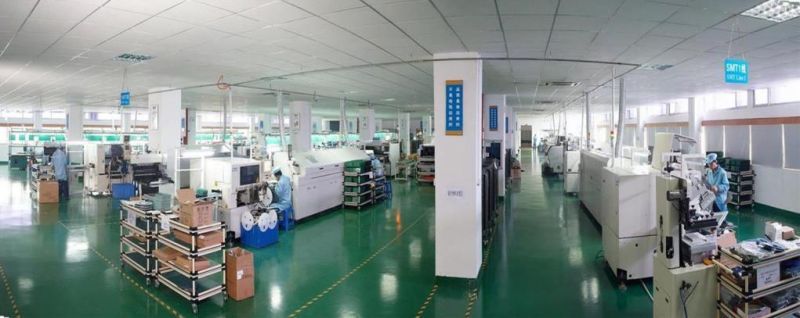

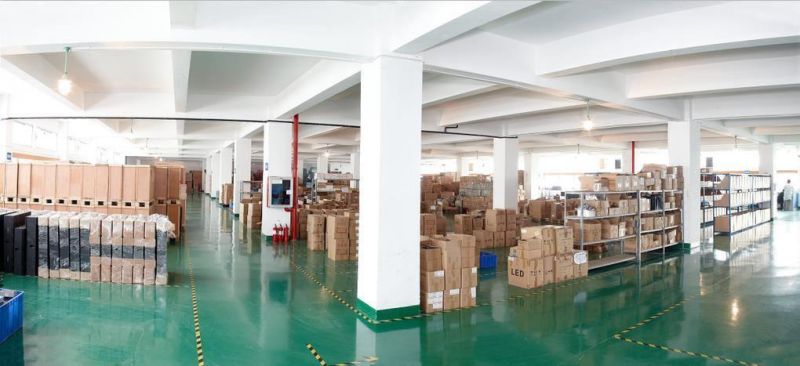

WORKSHOP:

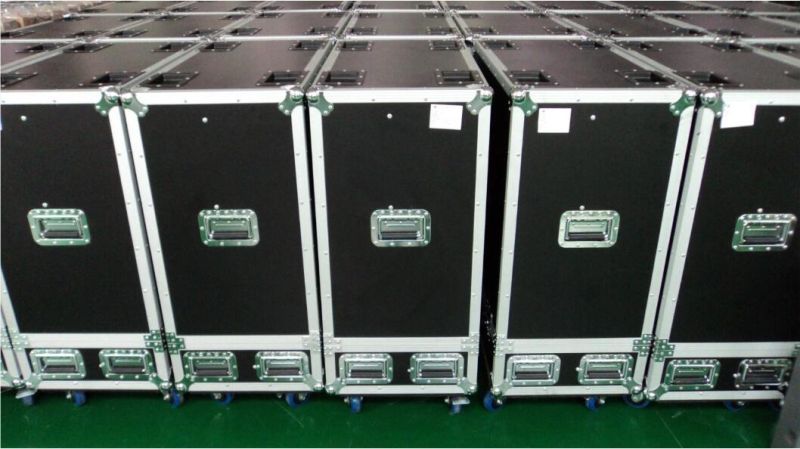

PACKAGE:


CULTURE:

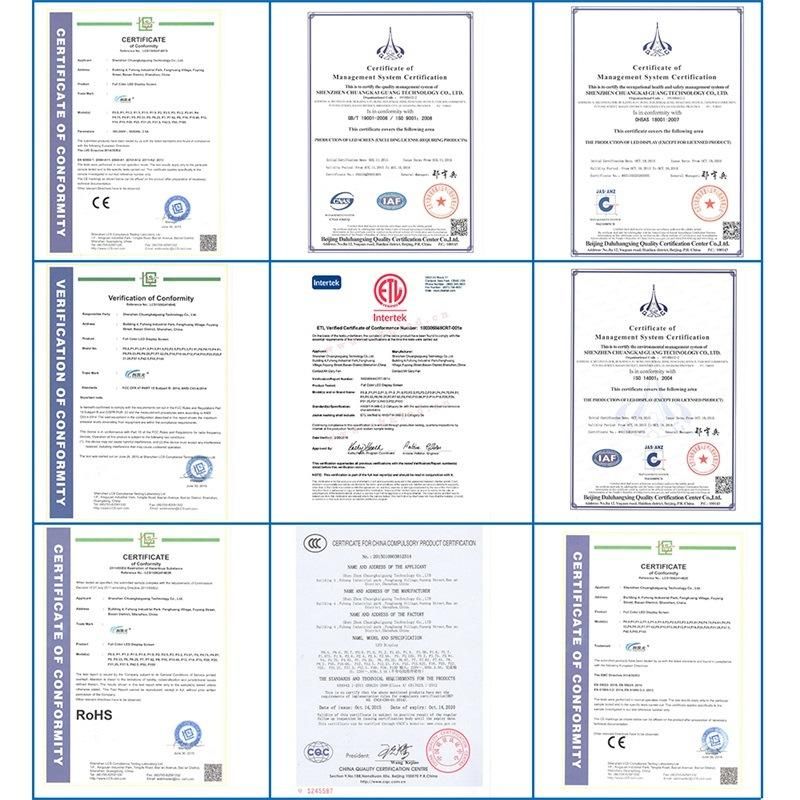

CERTIFICATES:




OUR SERVICE:

1. Your inquiry related to our products or price will be replied in 24hrs

2. The size can be change as you give.

3. What we show is some of our current models, welcome to give us your own ideas.

4. Protection of your sales area, ideas of design and all your private information

5. (Top Quality) + (Reasonable Price) + (Responsible After Service) = (Successful & Win )
