• Model NO.：P2.5
• Scanning Mode：1,16 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, CCC
• Brightness：4000CD
• LED Lamp：SMD1921
• Type：Outdoor P2.5 LED Display Screen
• Transport Package：Wooden Package
• Specification：160mm x 160mm
• Trademark：Hooshine
• Origin：Quanzhou
• HS Code：8529909090
• Production Capacity：50000PCS,Month

p2.5 smd1921 outdoor led display

Pixel Information

Pixel Pitch

 2.5mm

Technology

SMD1921

Pixel Density

160000 Pixels/m2

 Pixel Configuration

1R1G1B

LED Module

Module Size

160 mm (Width) × 160 mm(Height) = 0.0256/m2

Module Resolution

64 pixels(Width) × 64 pixels(Height) = 4096 pixels

LED Cabinet

Cabinet Size

480mm(Width) × 480 mm(Height) = 0.2304/m2

Cabinet Resolution

192Pixels(Width) × 192 Pixels(Height) = 36864 Pixels

Total QYT Module Per Cabinet

3 Modules(Width) × 3Modules(Height) = 9 Modules

Cabinet Weight

2.2kg

Cabinet Material

Steel or aluminum or  Magnesium

Power

Input Voltage

100-240V AC, 50/60Hz

Max Power Consumption

1200 Watt/m2

Avg. Power Consumption

600  Watt/m2

Viewing

Brightness

≥4000cd/m2

Brightness Uniformity

Luminance Discrepancy < 5%

Colors

16777216

Grey Scale(Level)

4096

Slot Between Neighboring Modules

< 1 mm

Best Viewing Angle

Horizontal:160°,Vertical:160°

Viewing Distance

5 - 300 meters

Ambint Conditions

Temperature Range

Storage:-40deg. to +85deg.; Working:-20deg. to +60deg

Operating Humidity

10%90%RH

Ingression Protection Grade

Front

Processing

Scanning Mode

1/16Scan

Refresh Frequency

180HZ-600HZ, Adjustable

Signal Input

DVI, Composite Video for Live Video

Supported Networking

Through LAN/WAN, RS 232/RS485

Other

Life Span

50,000 - 100,000 Hours

Software

Nova Star

P2.5 outdoor led display advantage:

1) High refresh rate , high brightness and high contrast which make the screen without any delay and smear phenomenon under directly sunlight.

2)Energy saving:low electric current,high-bright lamps,equipped with PFC switching power supply that save 30% electricty.

3)The brightness can be adjustable to meet the need of changing environment

4)Wide viewing angle: The horizontal and vertical viewing angles are so wide that it is suitable for wide horizontal

5)Environment protection, antistatic, dust-proof, good heat dissipation, cost-effective .

6)Error detection and monitoring:it can monitor the inner temperature,voltage,cooling fans etc and error detection automatically.

7) High reliability: using distributed scanning technology and module design technology that make higher reliability and stability.

8) Steady and reliable system:with strong anti-interference ability and long service life that can continually work for over 24 hours, and it's easy to operate the system.

9) Favorable effect: using dot to dot calibration technology makes the image clearer and the layering stronger

10) Convenient installation and maintenance of display modules


P2.5 outdoordoor led display packaging:


Our Services

1.The price depends on the quantity.We can offer you the best competitive price with the same even better quality.
2.Good  after sale service: We can response in time if customers have questions about the installation , usage and maintenance ect.
3. Your inquiry will be replied by well-trained and experienced staffs in 24 hours.
4. Top Quality+Reasonable Price+Responsible After Service=Successful & Win
5. Help you design OEM&ODM or any your customized lightings and put into production.
6. Distributorship are offered for your unique design and some our current models
7.Your sales area, ideas of design and all your private information will be well protected
Company Information

 We provide high quality  roll up led display  with very competitive price. Our automatic production lines and effective management ensure the competitive price of our products, which is the great advantage we could share with our customers.

We look forward to a trial order. This would enable you to see the high quality of the product and give you the opportunity to test its superiority at the same time.

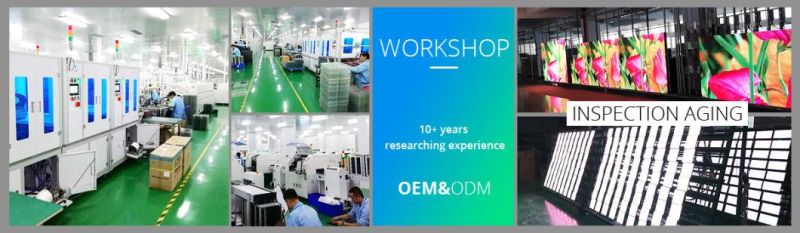

1.Factory tour:


2.Hooshine led smd production area:

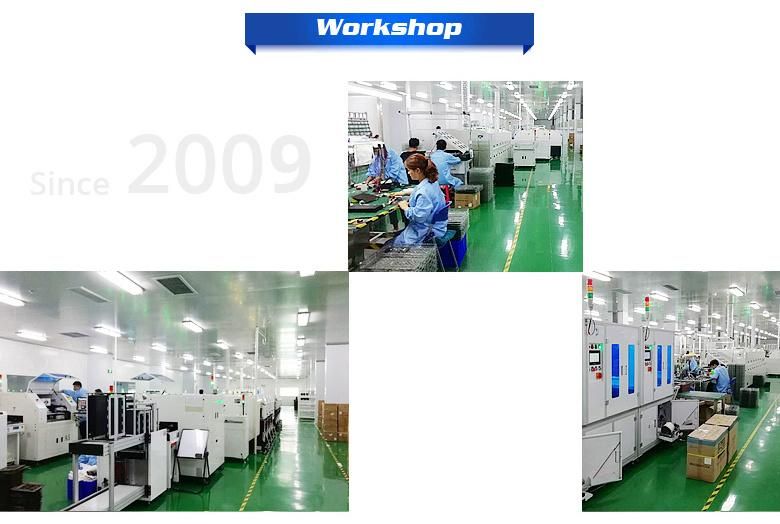

3.Hooshine led workshop and assembly area:


FAQ

Q: Where is your nearest Sea Port?

A: Our nearest sea port is at Xiamen,Fujian Provice

Q: What's the brand of your diode chip?
A: Our led lamps are by Sanan,Silan,Epistar,Cree etc.

Q: What is the led chip packing?
A:Indoor:SMD 3528/2121/1010 Outdoor:546 oval lamp/346 oval lamp/

Q:How to protect power supply?
A:Electrical peaks can put more force on the electrical components which will decrease life time .It is wise to install a protection (voltage stabilizer) that can control the peaks.


Thanks for your time! Wish you have a nice day! Why not contact us for more information and supprise right now! Email, Skype, Trademanager and so on...........
