• Model NO.：P8 outdoor
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS
• Panel Size：320mmx160mm
• Chip Brand：Epistar
• Refresh Frequency：1920-3840Hz
• View Angle：Horizontal140°,Vertical20
• Life Span：100000 Hours
• Working Volitage：110V to 240V
• Control Card：Nova Star,Colorlight,Linsn,HD
• Working Temperature：-20deg. to +60deg
• Humidity：10%~95%
• Delivery Time：3 to 15 Days, Depend on The Quantity
• H.S Code：8529909090
• Warranty Time：1year
• Transport Package：Wooden Package
• Specification：256x128mm
• Trademark：Hooshine
• Origin：Quanzhou, Fujian, China
• HS Code：8529909090
• Production Capacity：50000PCS,Month

Overview Product Description

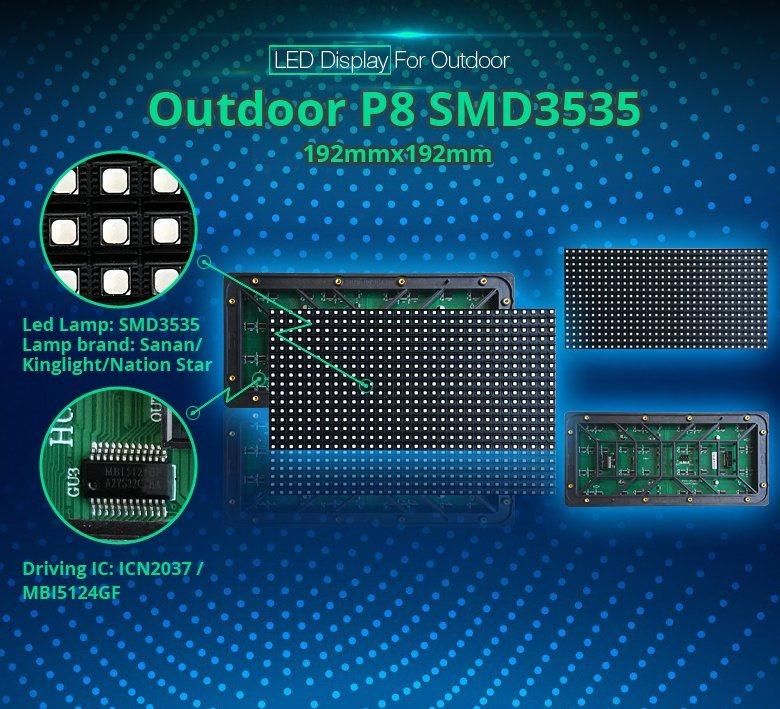

                                                                                  P8 outdoor SMD3535 Led Display Module


Pixel Information

Pixel Pitch

 8mm

Technology

SMD3535

Pixel Density

15625 Pixels/m2

 Pixel Configuration

1R1G1B

LED Module

Module Size

256mm (Width) × 128 mm(Height) = 0.033/m2

Module Resolution

32 pixels(Width) × 16 pixels(Height) = 512pixels

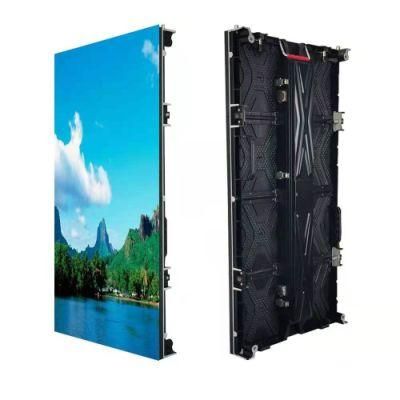

LED Cabinet

Cabinet Size

1024mm(Width) × 768mm(Height) = 0.79/m2

Cabinet Resolution

128Pixels(Width) × 96Pixels(Height) = 12288 Pixels

Total QYT Module Per Cabinet

4 Modules(Width) × 6Modules(Height) = 8 Modules

Cabinet Weight

38kg

Cabinet Material

Die-casting ,Iron , aluminum or  Magnesium

Power

Input Voltage

100-240V AC, 50/60Hz

Max Power Consumption

1000Watt/m2

Avg. Power Consumption

500  Watt/m2

Viewing

Brightness

≥5500cd/m2

Brightness Uniformity

Luminance Discrepancy < 5%

Colors

16777216

Grey Scale(Level)

4096

Slot Between Neighboring Modules

< 0.5mm

Best Viewing Angle

Horizontal:120°,Vertical:160°

Viewing Distance

5 - 200 meters

Ambint Conditions

Temperature Range

Storage:-40deg. to +85deg.; Working:-20deg. to +60deg

Operating Humidity

10%90%RH

Ingression Protection Grade

Processing

Scanning Mode

1/4Scan

Refresh Frequency

180HZ-600HZ, Adjustable

Signal Input

DVI, Composite Video for Live Video

Other

Life Span

100,000 Hours



Factorty Tour

Our Service

FAQQ1: Where is your nearest Sea Port?

A: Our nearest sea port is at Xiamen,Fujian Provice

Q2: What's the brand of your diode chip?A: Our led lamps are by Sanan,Kinglight,Silan,Epistar, Nation Star ,Cree etc.

Q3. Can I order a sample for led display screen?A: Yes, we warmly welcome you to order a sample to test and check quality. You can choose any item what you want.

Q4. How do you ship the goods and how long does it take to arrive?A: For large quantity,you can choose sea freight.For small order,you can ship by DHL, UPS, FedEx or TNT.Of course,you also can choose it by airline. It usually takes 3-7 days to arrive by express.

Q5. Is it OK to print our logo on led screen product?A: Yes,we can print your logo according your request.

Q6: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.002%.

Secondly, during the guarantee period, we will send new parts with new order for small quantity.

If the screen has serious damaged ( e.g. The whole cabinet couldn't work normally) caused by human, we would mend it with charge based on the cost
