• Model NO.：FXS-P3S
• System Operating Platform：Windows
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide
• IP Rating：IP31
• Certification：CE, RoHS, UL, CCC, ETL
• Cabinet：Alu,Steel
• LED Lamps：SMD 3 in 1
• Brightness：800-2500nits
• Refresh Rate：>3840Hz
• Viewing Distance：3 Meters
• Voltage：AC110-240V
• PSU：5V 60A
• Color Range：16bits
• Contrast Rate：3000:1
• Grey Scale：256 Levels
• Driver IC：Constent Current
• Cabinet Color：Black Grey(Optional)
• System：Nova,Linsn,Kystar
• Platform：Windows
• Transport Package：Plywood Cases
• Specification：240X120mm
• Trademark：LEDventure
• Origin：China
• HS Code：8528591090
• Production Capacity：4000m2,Month

ItemP1.25 P1.579 P1.667 P1.86 P1.875 P2 P2.5 P2.58 P3 P3.076 P4 P5 Indoor Screen Display for Curved Corner Pixel Pitch1.25mm-5mmPixel Density 40000-640000 pixels/M2Pixel Configuration1R1G1BLED TypeSMD 3 in 1Module Size320*160mm 256*128mm 240*120mmModule Resolution80*40 pixels (P3)Cabinet Size960x960mm (Customized)Protection LevelIP31Brightness>800 nitsMin Viewing Distance3 mAverage Power Consumption240 W/M2Scan Mode1/16 ScanRefresh Rate>3840hzColor TemperatureThe brightness of R.G.B. is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirementsInput VoltageAC110-240V, 50Hz/60HzViewing Angle ≤140°Color65535 LevelsEffective Communication Distance(without relay)<100 metersLifespan≥100,000 hoursEnvironment TemperatureStorage: -40°C~+85°C  , Operation: -20 °C~+45°CBlind Spot Rate<0.0001(led display industry standard is less than 0.0003)Control ModeVideo frequency synchronization

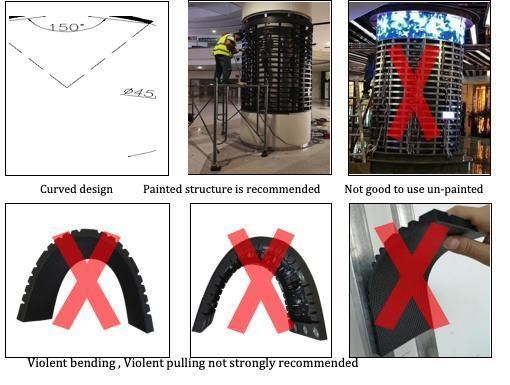

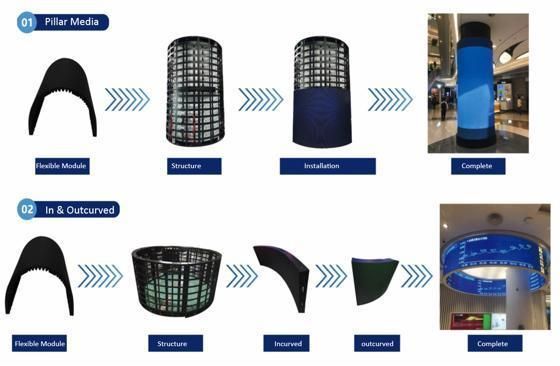

Part 6: Installation methods, outdoor front service back service LED Display screen fixed on the wall, on pillars, standing etc all available, and system hardware included sending cards sending box, processor, receiving cards etc.

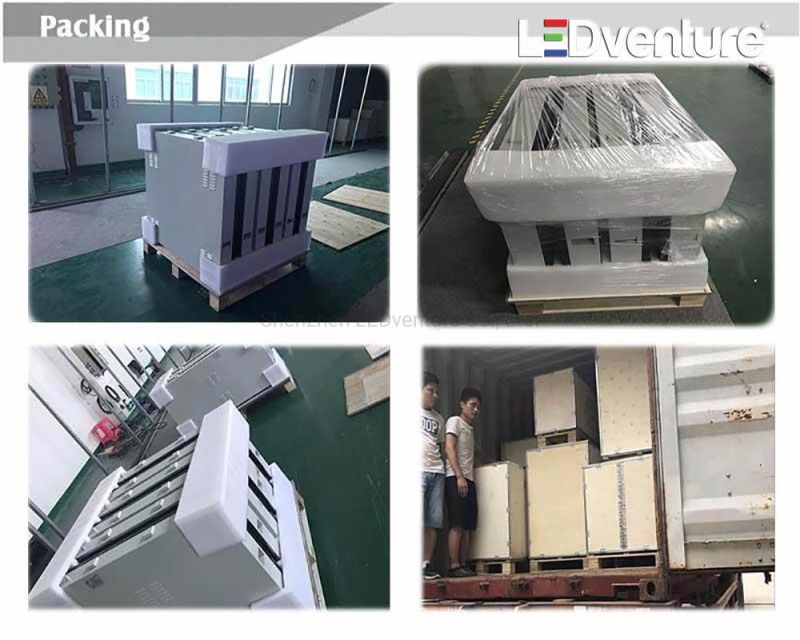

Part 7: Packing information by plywood cases, packing well and easy to load



Part 8: Certificates.

ALL of our Product passed CE, EMC FCC, UL and other security tests, to ensure to meet most market laws and standard requires, and make sure the quality is top level and stable for many years use.

Part 9: About LEDventure.



Part 10: LED Display Screen Installation Cases.

Most of our led display exported to Europe with high standards, and small percent to USA and Asia

Welcome to contact us for your detailed quotations!
