Outdoor New Pixels P3 Waterproof LED Display Screen

Guangzhou Qichuang Electronic & Technology Co., Ltd.
  • IP Rating:IP65
  • Pixel Pitch:3mm

Base Info

  • Model NO.:P3
  • Pixel Configuration:1R, 1G, 1B
  • Display Function:Video Display, Image & Text Display, Text Display, Market Display, Video, Animation, Picture, Graphic, Text, Moving M
  • Average Power Consumption:520W,Sqm
  • Pixel Density:111111 Dots,Sqm
  • Scanning Mode:1,16 Scan
  • Display Type:LED Video Display
  • Application:Stage Performance, Advertising, Shopping Guide etc
  • Certification:CE, RoHS, CCC, ISO9001, CB, FCC
  • LED Chip:Sanan and Epistar Customized
  • Colors:1.07 Billions
  • Moduel Size:192*192 mm
  • Moduel Resolution:64*64 Dots
  • Cabinet Sized(W*H):576*576 mm
  • Cabinet Resolution(W*H):192*192 Dots
  • Viewing Angle(H/V):H,V 160,140degree
  • Viewing Distance:>3m
  • Warranty:2 Years
  • Brightness(Average):≥6500CD,Sqm
  • Transport Package:Wooden Case or Flight Case
  • Specification:Customized size
  • Trademark:Qichuang
  • Origin:Guangdong, China
  • HS Code:8528591090
  • Production Capacity:10000 Square Meters,Month

Description

Basic Info.

Model NO. P3 Pixel Configuration 1R, 1G, 1B Display Function Video Display, Image & Text Display, Text Display, Market Display, Video, Animation, Picture, Graphic, Text, Moving M Average Power Consumption 520W/Sqm Pixel Density 111111 Dots/Sqm Scanning Mode 1/16 Scan Display Type LED Video Display Application Stage Performance, Advertising, Shopping Guide etc Certification CE, RoHS, CCC, ISO9001, CB, FCC LED Chip Sanan and Epistar Customized Colors 1.07 Billions Moduel Size 192*192 mm Moduel Resolution 64*64 Dots Cabinet Sized(W*H) 576*576 mm Cabinet Resolution(W*H) 192*192 Dots Viewing Angle(H/V) H/V 160/140degree Viewing Distance >3m Warranty 2 Years Brightness(Average) ≥6500CD/Sqm Transport Package Wooden Case or Flight Case Specification Customized size Trademark Qichuang Origin Guangdong, China HS Code 8528591090 Production Capacity 10000 Square Meters/Month

Product Description

Outdoor New Pixels P3 Waterproof LED Display Screen

Product Description
LED is the abbreviation for light emitting diode. LEDs are arrayed breadthwise and lengthways with stable pitch that form LED matric-LED Display Screen. Each LED of the LED Display has a corresponding luminance control circuit. A computer controls the circuit, the circuit influence the brightness of each LED, then form the picture or letters we desire in the led display screen.

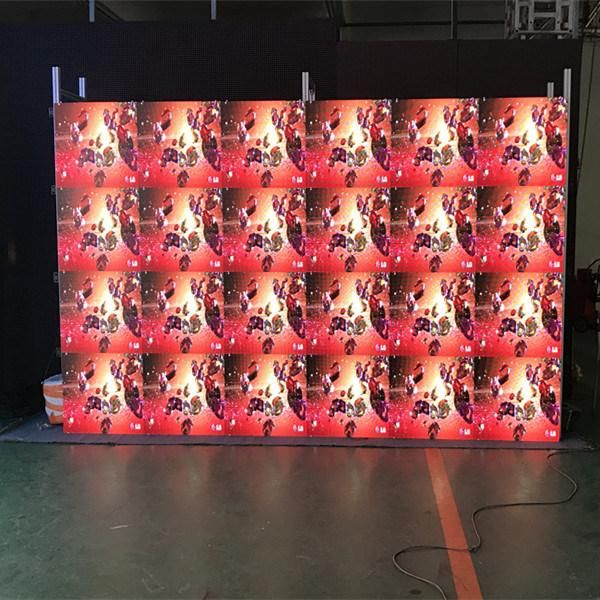

Outdoor New Pixels P3 Waterproof LED Display Screen

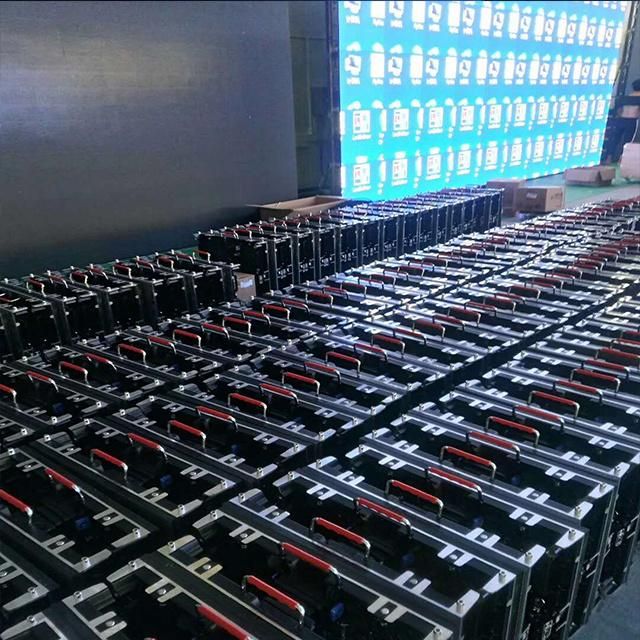

Outdoor New Pixels P3 Waterproof LED Display Screen

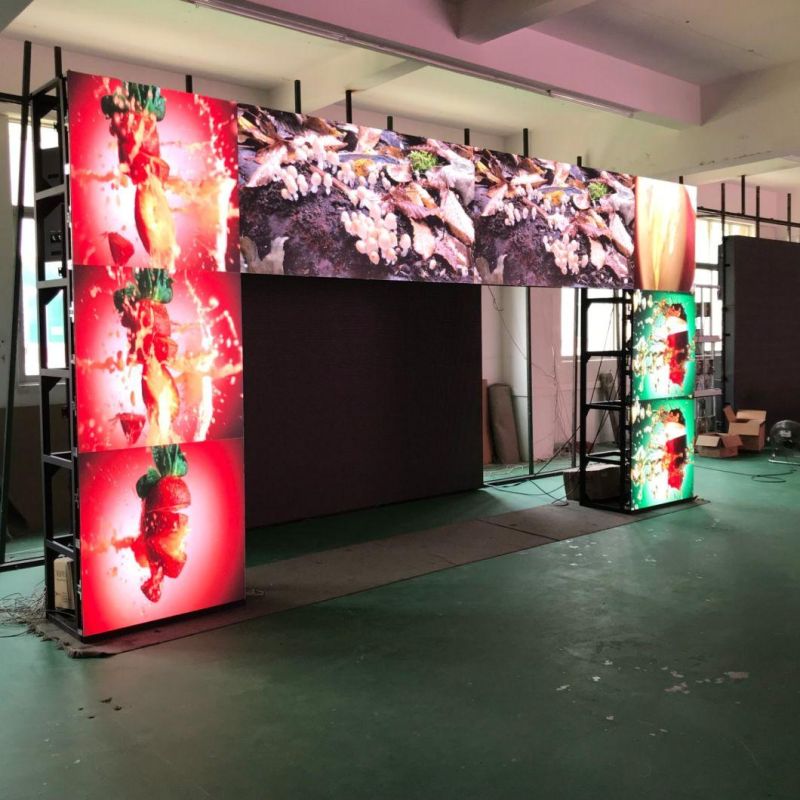

Outdoor New Pixels P3 Waterproof LED Display Screen

 Technical Parameters
Pitch sizemm
Pixel configuration1 Red, 1 Green ,1 Blue, SMD 3-in-1
Module size192*192mm
Module resolution(W*H)64*64dots
Warranty2 Years
Cabinet resolution(W*H)192dots * 192dots
Pixel density111111 dots/sqm
Cabinet size(W*H)576mm*576mm
Brightness(average)6500 cd/ sqm
View angle(H/V) H/V  160/140 degree
Average Power consumption 520 W/sqm
Net weight 28 kg/sqm
Voltage220V/110V±15% 50 Hz
Color scale 256~65536 degree /1.07 billion colors
Display mode VGA 640X480-VGA 1600X1024
Life span ≥100,000 hours
Refresh frame frequency1920 HZ
Exchange frame speed  >150 frames per second
Control distance≤100M (Cat.5 without repeater) /500 M (multi-mode optical fiber)/20000m(single-mode optical fiber)
Operating temperature-25°C~+60°C
Operating humidity10%-95% RH
Software  LED studio
Best view distance >3m
Communication port  VGA
Control modeSynchronous,  real time with PC
Drive modeConstant current driving
Protection of power supplyOvertemperature, overcurrent, overvoltage  etc.
Operating systemWindows 98/Me/2000/Xp
Brightness adjustment100 levels automatically or by hand
Drive mode1/16 scan, constant current

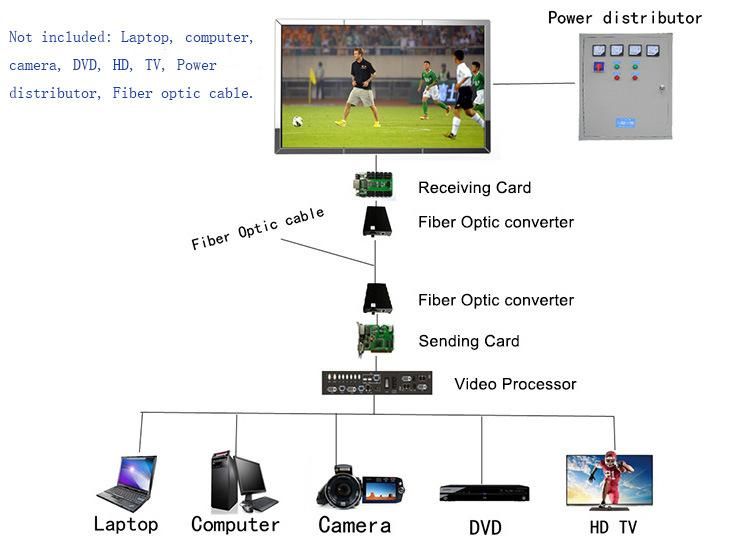

Connection System Diagram:
Outdoor New Pixels P3 Waterproof LED Display Screen



Advantages of LED Display:
1) High Definition and can be adjusted, can showing DVD, TV, Dynamic images, VCRS, graphs, letters and animations for 24 hours. Sharp, colorful, synchronized with computer monitor. Waterproof, Sun-screen, antistatic, damp proof, anti-freeze, anti-thundering etc.
2) Best equality, commendably solve the problem of the mosaic, have the excellent consistency of light
3) To pictures and character, have clear, exquisite and real display effect of led sign.
4) Big viewing angle to horizontal line and vertical line, can see at every angle at this range, no picture change, no   color excursion.
5) Can repair each led lamps, so the cost of maintain is lower, and easy to repair for led sign!

Company Information
Outdoor New Pixels P3 Waterproof LED Display Screen



Packaging & Shipping
Outdoor New Pixels P3 Waterproof LED Display Screen




Our Services
OUR COMPANY provides on site product installation, debugging and maintenance service for our LED display. Such as:
1. After-sales service:
1) Service principles: response in time, solve problems as soon as possible and ensure the use.
2) Service period: In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees.
3) Service scope: If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare parts such as power and chips etc.
4) Under normal use and storage, Our Company will be responsible for the equipment.

2. Pre-sales service:
1) Our company can arrange professionals to conduct site installation and debugging in strict accordance with the requirements of the schemes and the original manual. If there is any special requirement, it is necessary to make changes of part installation scheme, we will coordinate with users. Our company can ensure the consistence of completion time and contracted time.  Any problems caused by natural factors or man-made, we will discuss with client to find solutions.
2) Our company can train the users based on the manual.  The training include system use, system maintenance and equipment protectionFAQWhy choose Guangzhou Qichuang Electronic & Technology Co., Ltd.
1),Vivid and exact picture, minimum noise, advanced test equipment, support any pc operation system and play a variety of information like video, word, flash, music, clock, graph etc.
2),High brightness and support brightness automatically adjustment.
3),Long lifespan, can reach more than 100,000 hours, while the power consumption is lower than one tenth of lamp or neon;
4),Easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED display system;
5),Rich outdoor full color LED display screen engineering experience both in domestic and international market.
6),Well before, in,after-service.all for our customer reassurance.
