• Model NO.：V05
• System Operating Platform：Win 98,2000,XP,Vista
• Display Type：LED Video Display
• Application：Advertising, Shopping Guide
• IP Rating：IP31
• Certification：CE, RoHS, UL, CCC, ETL
• LED Type：SMD2020
• Module Size：320X160mm
• Cabinet Size：640X640mm
• Brightness：1500CD,Sqm
• Grey Scale：14bit
• Refresh Rate：1920Hz
• IP Grade：IP31
• Controller：Novastar,Linsn
• Maintenance：Rear Service
• Input Voltage：AC 100-240V
• Frame Frequency：60Hz
• Certificates：RoHS,Ce,CCC
• Max. Co：480W,Sqm
• Viewing Angle：H:140 , V: 140
• Working Humidity：10~90%Rh
• Transport Package：Wooden Case
• Specification：640x640mm
• Trademark：CKGLED
• Origin：China
• HS Code：8528591090
• Production Capacity：6000sqm,Month

Basic Info.

Model NO. V05 System Operating Platform Win 98/2000/XP/Vista Display Type LED Video Display Application Advertising, Shopping Guide IP Rating IP31 Certification CE, RoHS, UL, CCC, ETL LED Type SMD2020 Module Size 320X160mm Cabinet Size 640X640mm Brightness 1500CD/Sqm Grey Scale 14bit Refresh Rate 1920Hz IP Grade IP31 Controller Novastar/Linsn Maintenance Rear Service Input Voltage AC 100-240V Frame Frequency 60Hz Certificates RoHS/Ce/CCC Max. Co 480W/Sqm Viewing Angle H:140 / V: 140 Working Humidity 10~90%Rh Transport Package Wooden Case Specification 640x640mm Trademark CKGLED Origin China HS Code 8528591090 Production Capacity 6000sqm/Month

Product Description

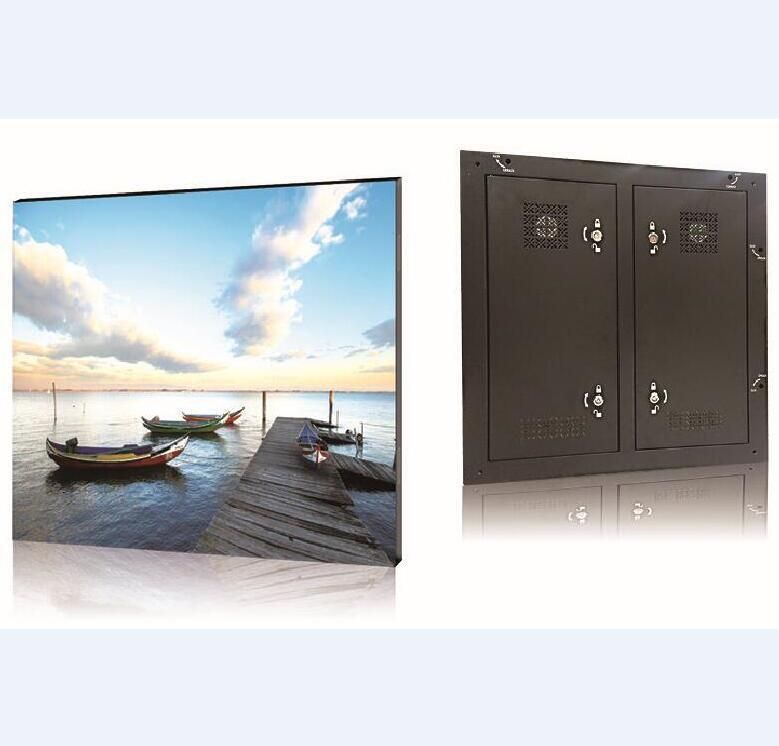

V SERIES Product Features:

Quiet fan design,excellent heat dissipation.

Sidelocks design for better consistency and seamless assembly.

High polymer flexible mask, no mosaic phenomenon, better contract ratio.

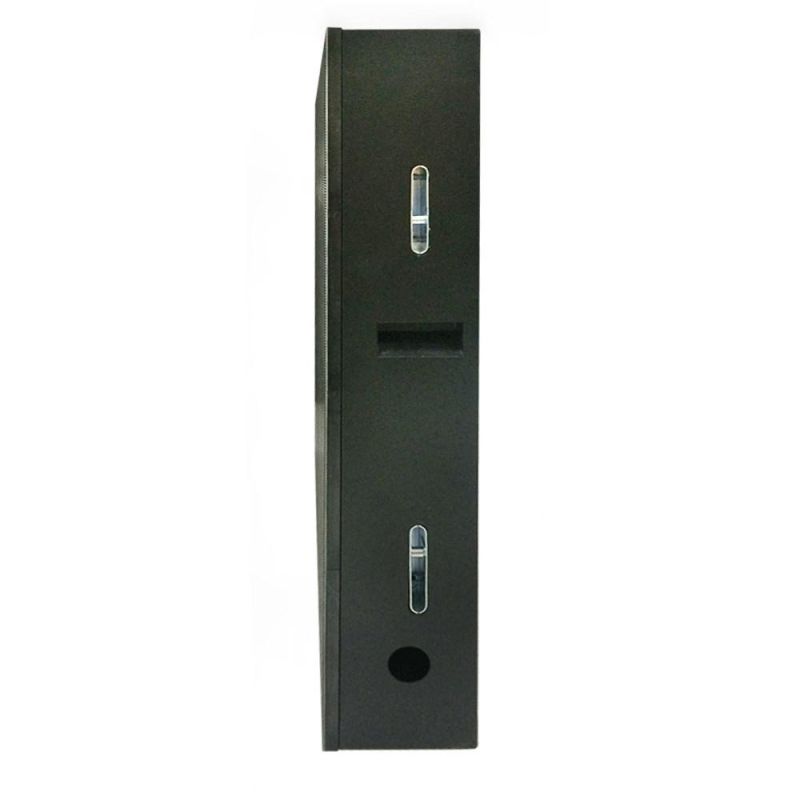

High-performance metal plate cabinet, concise cable.

The sealed-type back cover, effectively prevent wrong operations from the amateur.


PRODUCT SPECIFICATIONS


NO.	DIsplay Parameters	Specifications
1	Diplay Model	V05
2	Pixel Pitch (mm)	5
3	Physical Density (dot/m2)	40000
4	LED Configuration	1R1G1B
5	LED Type	SMD2020
6	Module Size (mm x mm)	320x160
7	Drive Mode	1/16
8	Viewing Angle (Deg)	H:140 / V:140
9	Brightness (cd/m2)	≥1500
10	Grey Scale	14 bits
11	Refresh Rate (Hz)	1920
12	Power Consumption (W/sqm)	MAX: 480 / AVE: 160
13	Cabinet Size (mm x mm)	640x640
14	Input Voltage (V)	AC 110V~220V+/-10%
15	Refresh Frame Frequency (Hz)	60
16	Protection Level	IP31
17	Working Temperature (ºC)	-20°- +50°
18	Operation humidity (RH)	10%-90%
19	Certificates	CCC,CE,RoHS

Package:

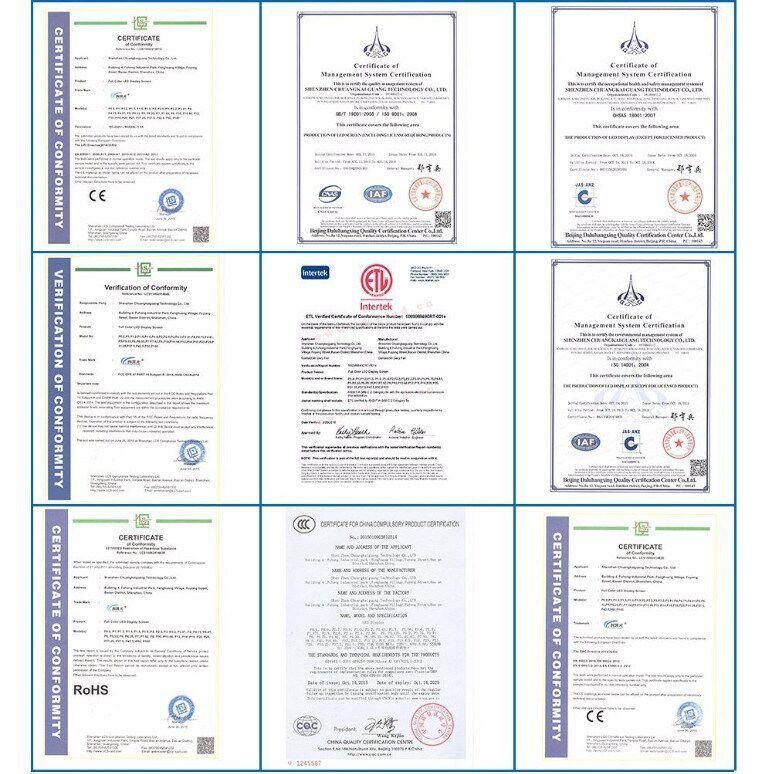

Certificates:









Package:

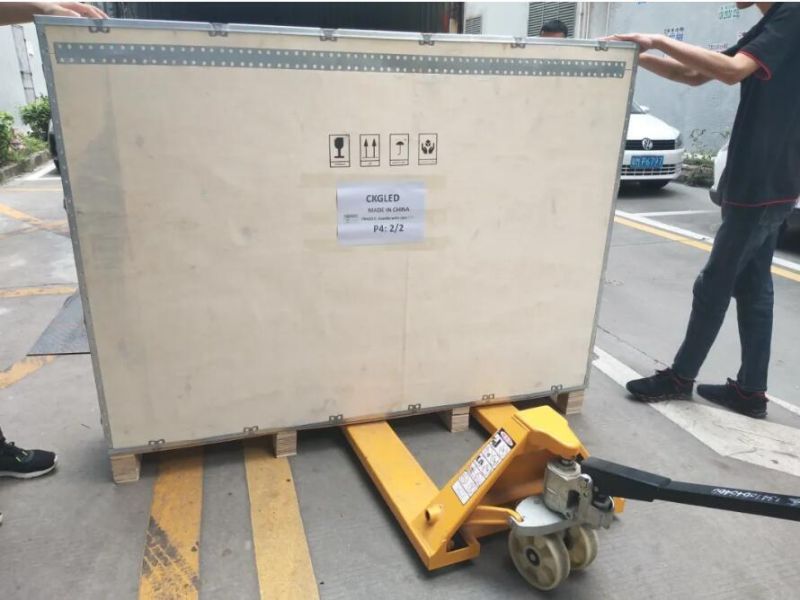

For iron cabinet LED display screen of indoor or outdoor, we usually use wooden case to packing

For aluminum cabinet of LED rental stage display, we usuallu use flight case to packing

One wooden case including 2 cabinets, one flight case including 6 cabinets

Shippment

By air or sea, FOB shenzhen

UPS/DHL/FedEx/Express(door to door)and so on

Delivery time

Within 15 days counting from 30% prepayment arrived at CKGLED account.

Payment term>>>

T/T(30% deposit, the remained 70% payment made before factory shipment )

Our service:

Pre-Sales  Service

Provide details about the production procedure

Assign engineers for installation and testing

Sales  Service

Customized solution designs

Product rendering and steel structure drawing

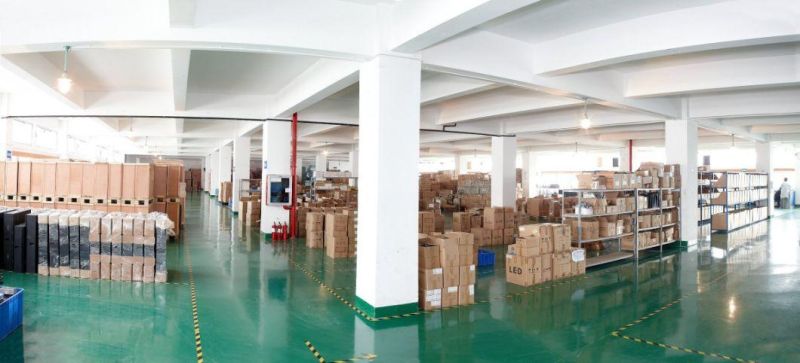

CKGLED's successful project examples and visits to our production and R&D base

After-Sales  Service

Two-year quality warranty with lifelong maintenance.

Free guarantee repair (including labor and material):  free repair service during the quality warranty period and reasonable charge for spare parts and

maintaining service after the quality warranty period. We will never exempt our responsibilities on product owned defects.

Responding time: upon receiving user's notification, we ensure 24-hour after-sales technical support.

Spare parts: necessary spare parts are provided together with products to customers.

Free technical training: integrative and normative technology training is available for free to customers by our technical personnel to ensure they are

skilled in regular operations of hardware and software of products and they are able to estimate and solve small problems.

Telephone investigation: our after-sales team will phone the user every month during the warranty period to follow up the working condition of the

products, and to discover and solve problems, if necessary.

Software upgrade: lifelong maintenance of controlling system, incessant improvement of the system functions and continuous software upgrades.

Site instruction service of installation is available.

Free on-site service for hardware related issues.
