High Resolution P2 LED Video Panel for Indoor Advertising

PRT Optoelectronic Co., Ltd.
  • Tube Chip Color：Full Color
  • Display Function：Video Display
  • Pixel Pitch：2mm
  • Pixel Configuration：1R,1G,1B
  • Pixel Density：250000dots,Sq.M
  • Scanning Mode：1,32 Scan

Base Info

  • Model NO.：P2
  • System Operating Platform：Win XP,Win7,8,Nt
  • Display Type：LED Video Display
  • Application：Stage Performance, Advertising, Shopping Guide
  • IP Rating：IP43
  • Certification：CE, RoHS, CCC, FCC
  • Cabinet Size：512 * 512 mm
  • Cabinet Material：Die-Cast Aluminum
  • LED Type：SMD1515

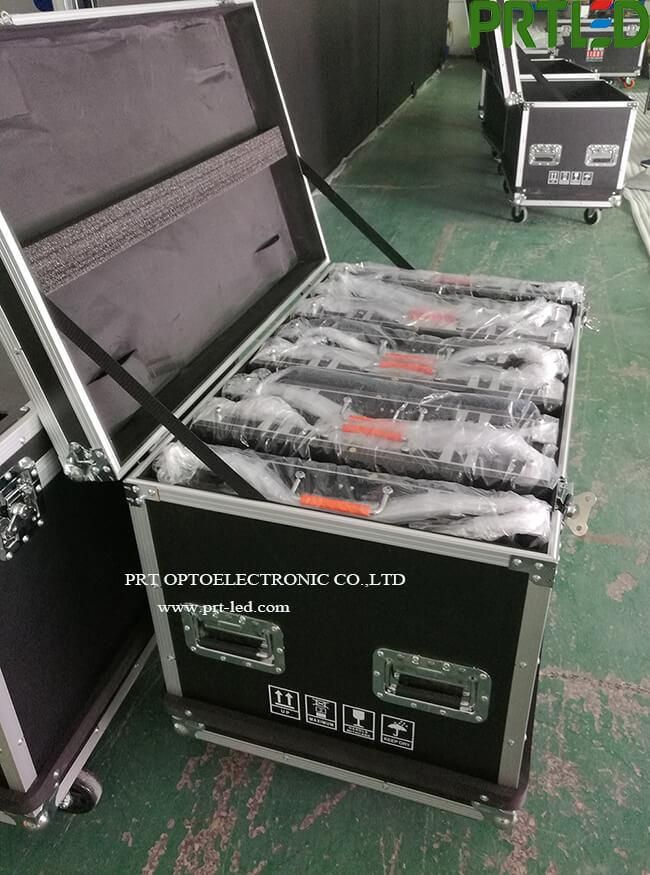

  • Transport Package：Flight Case or Wooden Case
  • Specification：CE, FCC. ROHS, 3C
  • Trademark：PRT
  • Origin：Shenzhen
  • HS Code：8528591090
  • Production Capacity：1000sq. M,Month

Description

P2 SMD1010 Indoor full Color LED Screen SpecificationPixel pitch2mmPixel Configuration1R1G1BLED componentSMD1515 black / SMD1010Size of module256 mm x 128mmResolution of module128 x 64 dotsSize of cabinet512 mm x 512 mm x 75mmResolution of cabinet256 x 256 dotsMaterial of CabinetDie-casting AluminumWeight of Cabinet8.5KGSBrightness<1500cd/sq.mDensity250000dots/sq.mBest viewing angle160° /140°Pixel Configuration1R1G1BBest viewing distance2-30MMaximum power consumption1200W/sq.mAverage power consumption640W/sq.mDriving method1/32 scanControl methodSynchronizationGray scale65536Color temperature3200-9300kUniformity97%Working voltageAC220V/110V±10%Working temperature-20ºC~+50ºC±10%Working humidity10% ~ 90%MTBF10,000 hoursFrame frequence50/60HzRefresh frequence>3840HzIP gradeIP31Life Span100,000 hoursData transafer methodRJ45Pratical standardCCC  TUV-CE  ETL etc.Effectivce Communication
Distance(without relay)Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KMAccepting signal with video processorPAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.Systems operating platformWINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development

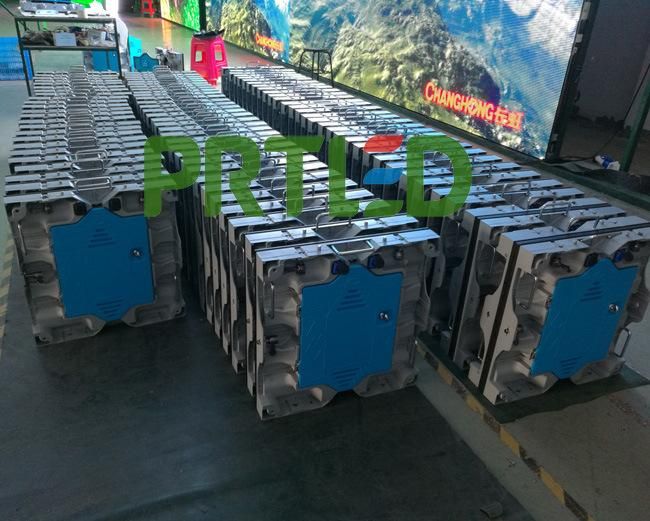

Also, we can choose other cabinets with different outlooking design :
High Resolution P2 LED Video Panel for Indoor Advertising
High Resolution P2 LED Video Panel for Indoor Advertising
High Resolution P2 LED Video Panel for Indoor Advertising
PRT produce products based on international standards CE,ROHS,FCC etc,and with a strict quality control system to confirm everything is ok during each process
