• Model NO.：LW-FI 3
• System Operating Platform：Win7 XP Vista
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide
• IP Rating：IP31
• Certification：CE, RoHS, CCC
• LED Type：SMD2020
• Viewing Angle：H:140 V140
• Traditional Cabinet：Metal Plate
• Module Size(mm)：192X192X13
• Cabinet Size(mm)：384X384
• Cabinet Material：Aluminum
• Cabinet Weight(Kg)：9kg
• IP Grade：IP31
• Mtbf：10000h
• Compliant Standard：Ce, FCC, RoHS, ETL, CCC
• Transport Package：Plywood Box or Flight Case
• Specification：CE, ROHS, CCC, FCC
• Trademark：LED World
• Origin：Shenzhen, Guangdong, China.
• HS Code：8528591090
• Production Capacity：5000sq. M,Month

ItemsP2.5mmP3mmP4mmP5mmP6mmP10mmPixel1R1G1B1R1G1B1R1G1B1R1G1B1R1G1B1R1G1BConfigurationSMD 3-in-1SMD 3-in-1SMD 3-in-1SMD 3-in-1SMD 3-in-1SMD 3-in-1Pixel Pitch2.5mm3mm4mm5mm6mm10mmPixel Density160,000111,11162,50040,00027,77710,000Module Size(mm)160x160192x192or 192x96256x128160x160or 320x160192x192 or 384x192320x160Pixels/Module64x6464x64or 64x3264x3232x32or 64x3232x32or 64x3232x16Cabinet Size(mm)960x960960x9601024x1024960x960960x960960x960Pixels/Cabinet384x384320x320256x256192x192160x16096x96Cabinet Weight37KG37KG42KG37KG37KG37KGBrightness1300cd/1300cd/1300cd/1300cd/1300cd/1000cd/Viewing Distance>2.5m>3m>4m>5m>6m>10mPower Consumption Max: 800Max: 800Max: 650Max: 400Max: 400Max: 300(W/)Ave: 240Ave: 240Ave: 195Ave: 120Ave: 120Ave: 100Driver Mode1/32 scan1/16 scan1/16 scan1/16 scan1/16 scan1/8 scanCabinet MaterialCold Rolled SteelRefresh Rate300-3000HZ adjustableLED Life100,000 hoursSupply VoltageAC220V/50HZ; AC110V/60HZOperating Temperature-20ºC ~ +40ºCOperating Humidity10% - 90%Viewing AngleH: 120°; V: 120°Gray ScaleRed, Green, and Blue each 16KDisplay Color4096 BillionIP RatingIP20Display CapabilityText, Graph, and VideoNotes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.

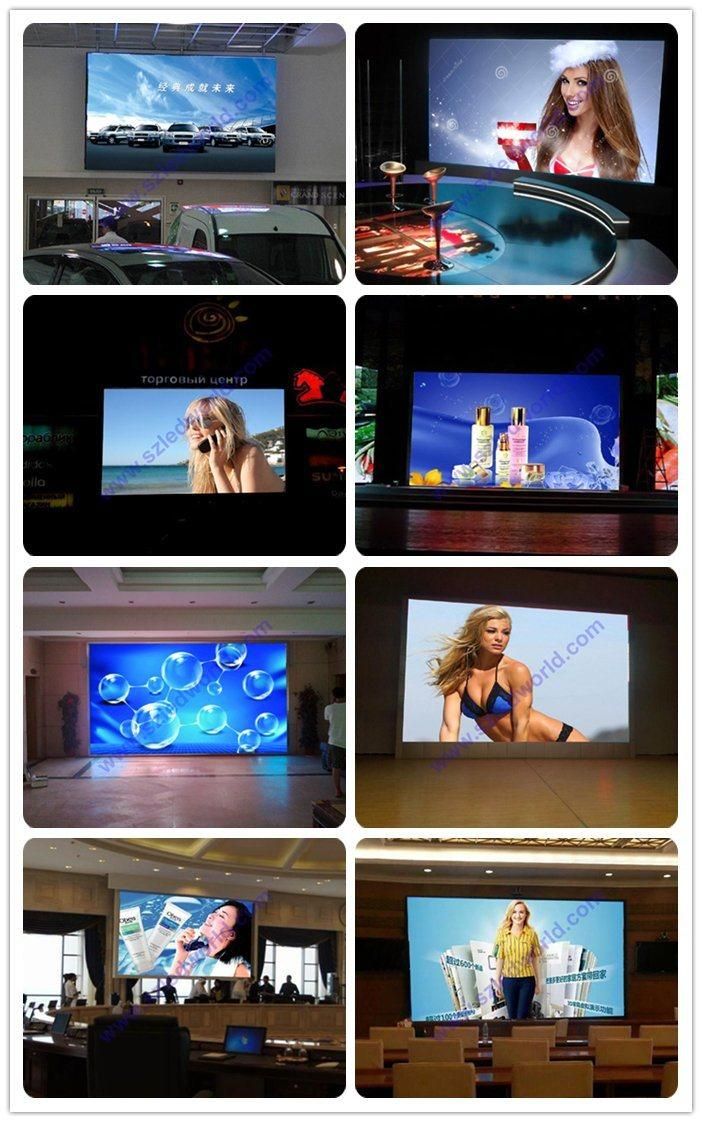

Project case:

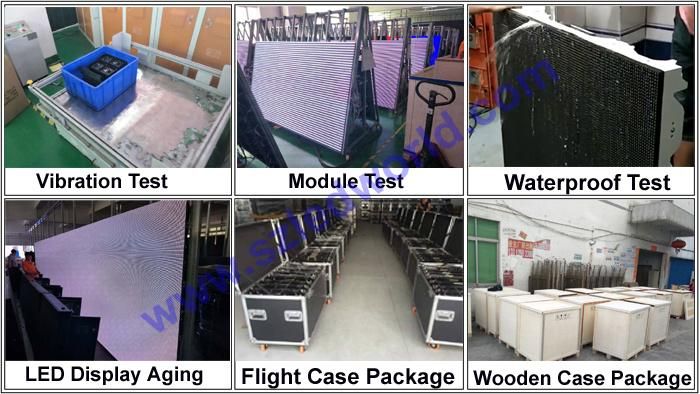

Product testing:

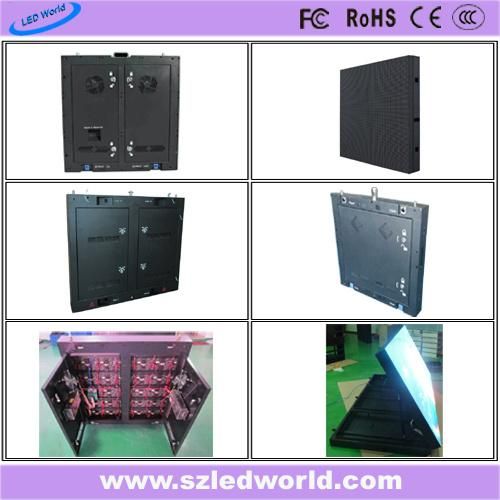

Product detail:

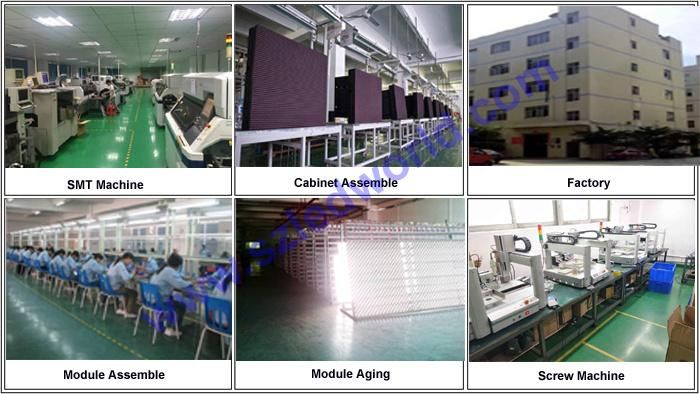

Workshop:

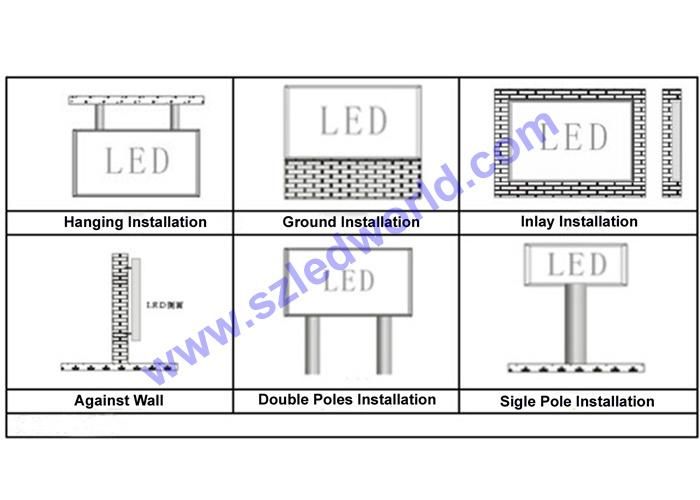

Product installation:

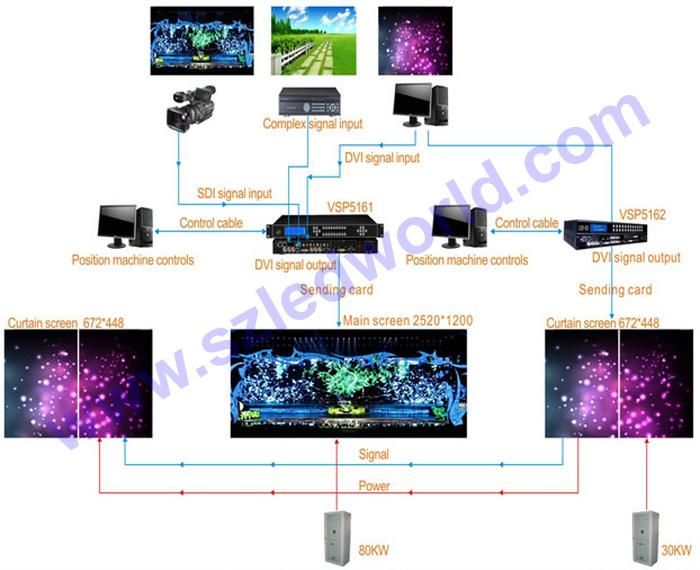

Control system:



Products related:
LED Display /LED display screen/LED sign/LED video wall
1. Model No.: P1.66,P1.8,P1.9, P2,P2.5, P3, P4, P5, P6, P7.62, P8, P10, P12, P16, P20, P25 etc
2. Display Color: 256*256*256
3. LED Chips: Opto, Epistar, Silan, Huacan, Sanan
4. Raw Materials: Toshiba IC, MBI IC, Chuanglian Power Supply, Meanwell Power Supply, Meanwell fans, ADDA fan, Beijing glue, Korean glue.
5. Cabinet: Standard cabinet, simple cabinet, customized cabinet, a cabinet for rental, Iron or Aluminum cabinet, a cabinet for front maintenance, cabinet with lock, special cabinet with Southco Lock, for hung and rental and etc.
6. Package: Flight case, wooden box package & carton box and etc.
7. Guarantee: 2 year



FAQ
1. How can I place an order?
Please provide the details of your requirements as clear as possible. So we can send you the offer the first time. For designing or further discussion, it is better to contact us with Skype/email /phone, in case of any delays.

2. What kind of display we provide?
We have indoor/outdoor/rental taxi top /mobile LED display/LED stage/Irregular LED display for you to choose from.


3. Are you a manufacturer of led displays. If yes, in which city?
Yes, Our factory with 2000 square meters. And we're in SHENZHEN city, GUANGDONG Province.

4. How long can I get the goods?
Our production time is about 10-25 working days. When you confirmed the order, we can start production after receiving your deposit(30% TT in advance). we will update the production details in time. we will notice you that we can deliver the goods to you after we get full payment.

5.May I know the package details?
For fixed installation, we use a wooden case, usually 2 or 4 cabinets in 1 wooden case;
For the rental market, we suggest you use a flight case, generally 8 cabinets in one flight case.
It's safe to protect the screen on the way, also economical.

6.What is the payment method?
We support a variety of payment methods, the most common is the TT.


7. What's the pixel pitch for Outdoor LED Display Screen?
Outdoor (p3.91mm/p4.81/p5mm/P6mm/ p6.25 /p6.67/ P8mm/P10mm/p16mm/p20mm) led display screen

8.Can it play HD video?
Yes, it can realize HD video function with Linsn/nova controlling system

9.What's the controlling system?
Our standard controlling system for this model is Linsn/ Novastar. Also support another controlling system, like Xixun, TF, Colorlight, etc.


10.What's the difference between DIP(1R1G1B) and SMD(One LED, 3 in 1)?
SMD(One LED, 3 in 1) LED Display, one pixel has one LED lamp, 3 led chips in one LED Lamp;
Traditional DIP( 1R1G1B) use 3 LED Lamp in one pixel.
SMD(One LED), reduced the LED on the screens, reduced grainy of the screen, and improve the uniformity of the screen, this will make the screen have a more wide viewing angle and smooth image. With the technology advanced and SMD brightness improved, SMD is more and more used outdoor.


11. What are your terms of delivery?
We accept EXW, FOB, CFR, CIF, DDU, DDP, etc. You can choose the one which is the most convenient or cost-effective for you.
