• Model NO.：P3.91mm
• Pixel Density：65536dots,Sqm
• Scanning Mode：1,16 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, UL, CCC, ETL
• Module Size：250X250mm
• Module Resolution：64X64dots
• Cabinet Size：500X500mm
• Cabinet Resolution：128X128dots
• Screen Brightness：5500nits
• Protection Grade：IP65
• Viewing Angle：V:140° , H:140°
• Controller：Nova
• Maintenance：Rear , Front Service
• Compliance：Ce
• Grey Scale：14bit
• Refresh Rate：3840Hz
• Transport Package：Flight Case
• Specification：500*500mm
• Trademark：CKGLED
• Origin：China
• HS Code：8528591090
• Production Capacity：6000sqm,Month

Basic Info.

Model NO. P3.91mm Pixel Density 65536dots/Sqm Scanning Mode 1/16 Scan Display Type LED Video Display Application Advertising Certification CE, RoHS, UL, CCC, ETL Module Size 250X250mm Module Resolution 64X64dots Cabinet Size 500X500mm Cabinet Resolution 128X128dots Screen Brightness 5500nits Protection Grade IP65 Viewing Angle V:140° / H:140° Controller Nova Maintenance Rear / Front Service Compliance Ce Grey Scale 14bit Refresh Rate 3840Hz Transport Package Flight Case Specification 500*500mm Trademark CKGLED Origin China HS Code 8528591090 Production Capacity 6000sqm/Month

Product Description

T SERIES PRODUCT FEATURES:

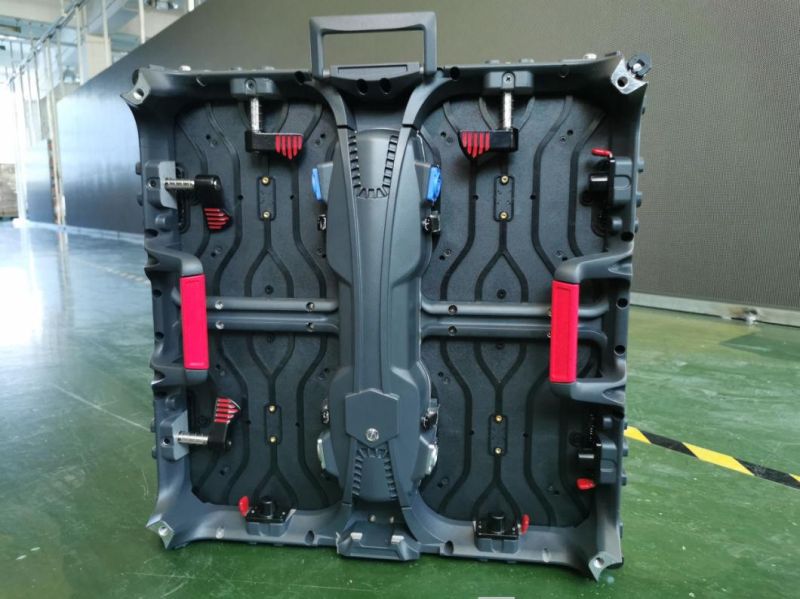

1. Light weight and ultra slim cabinet:
. 6.2kg only per cabinet / 88mm thickness.

2. 500x500 and 500x1000mm compatible.
   . 500x1000mm cabinet is more quickly to make big screen, and 500x500mm cabinet is to made 3.5m high video wall.

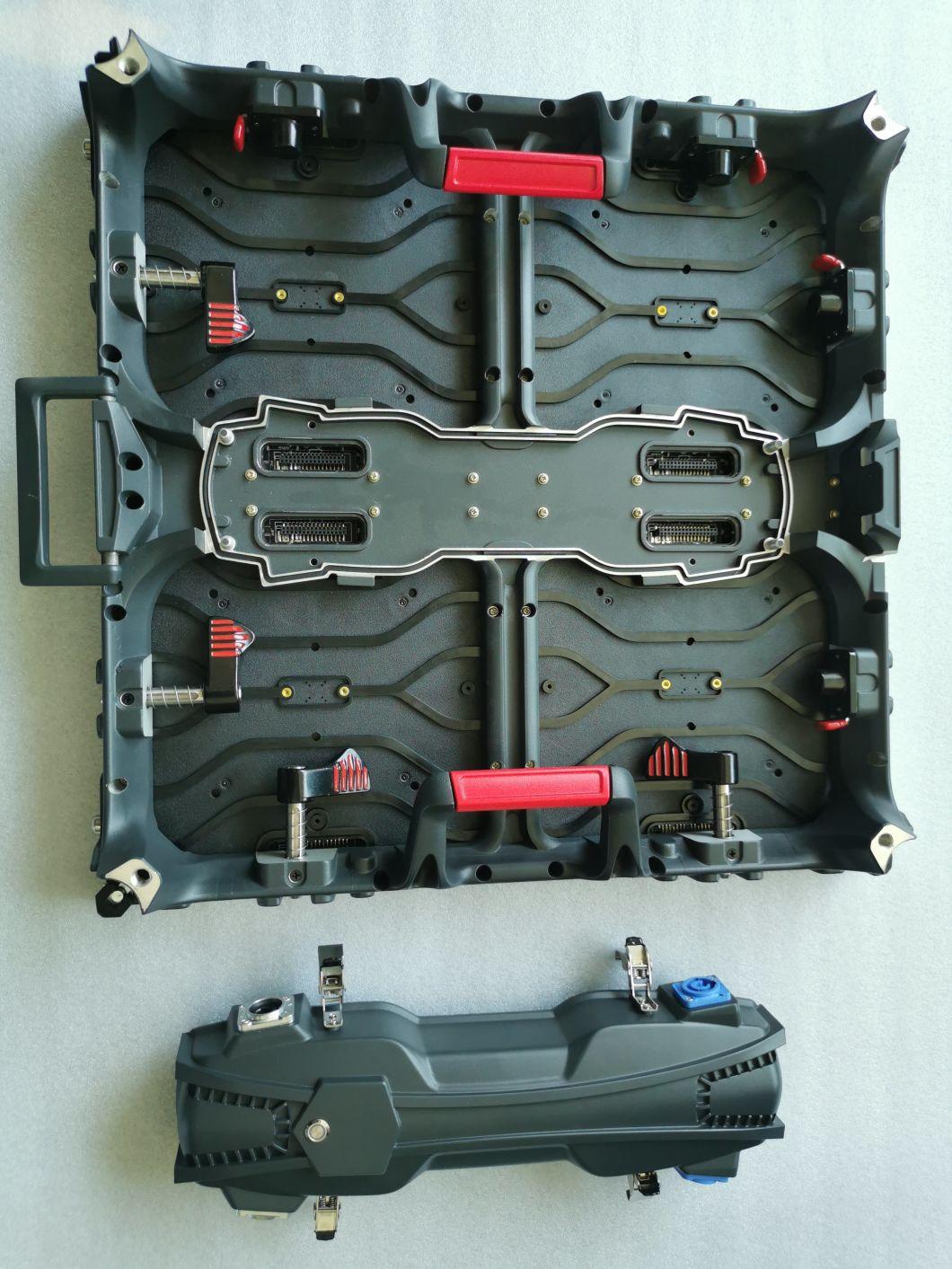

3. Smart cabinet handle design.
   . Easier to take and more convenient for installation.

4. Fast locking system.
   .Fast installation to save labor cost and time.


PRODUCT SPECIFICATIONS:


NO.	Parameter	Specifications
1	Model:	T3
2	Pixel Pitch (mm)	3.91
3	Physical Density (dot/m2)	65536
4	LED Configuration	1R1G1B
5	LED Type	SMD1921
6	Module Size (mm x mm)	250x250
7	Module Resolution (PX x PX)	64x64
8	Drive Mode	1/16 Constant Current Drive
9	Horizontal Viewing Angle (Deg)	140
10	Vertical Viewing Angle (Deg)	140
11	Brightness (cd/m2)	6500
12	Grey Scale	14bit
13	Refresh Rate (Hz)	3840
14	Cabinet Resolution (PX x PX)	128x128
15	Cabinet Max. Power Consumption (W)	5600
16	Cabinet Ave. Power Consumption (W)	230
17	Cabinet Size (mm x mm)	500x500mm
18	Cabinet Material	Die-casting Aluminum
19	Color (M)	>16.7
20	Input Voltage (V)	AC 110V~220V+/-10%
21	Refresh Frame Frequency (Hz)	60
22	Protection Level	IP65

23	Working Environment	Outdoor
24	Working Temperature (ºC)	"-30°- +60°
25	Operation humidity (RH)	10%-95%
26	Certificates	CCC ,CE,RoHS

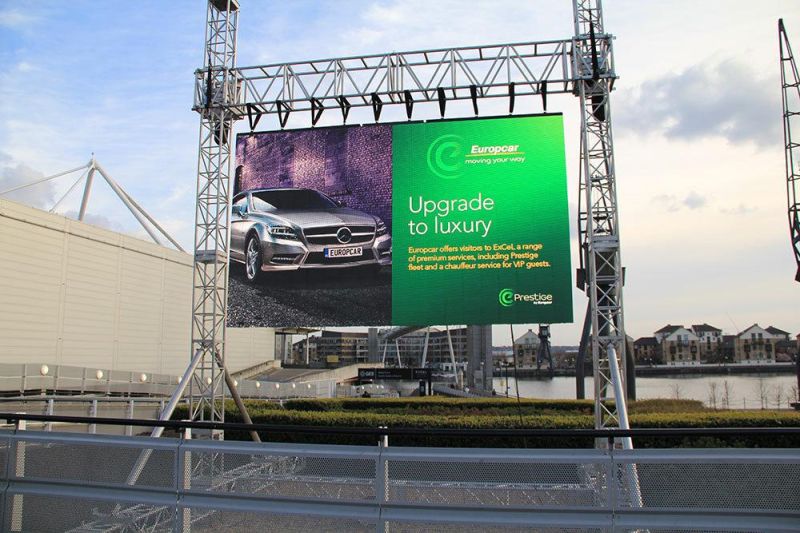

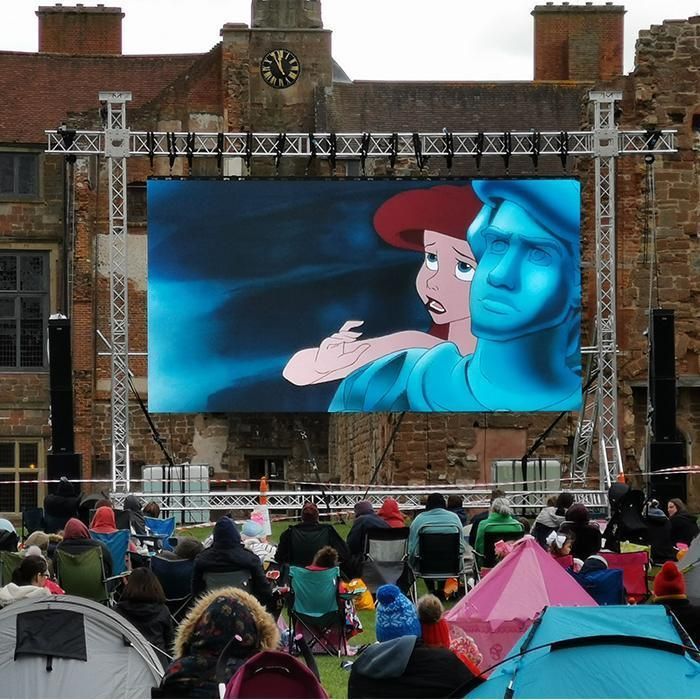

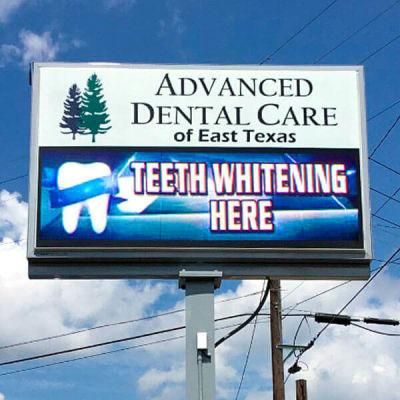

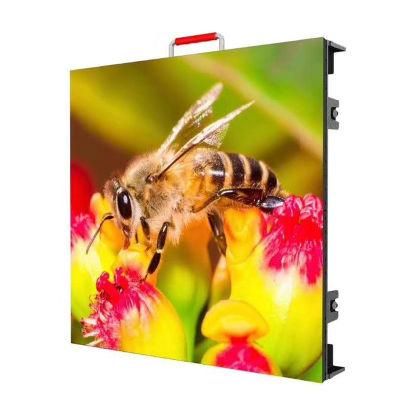

PRODUCT PHOTOS:

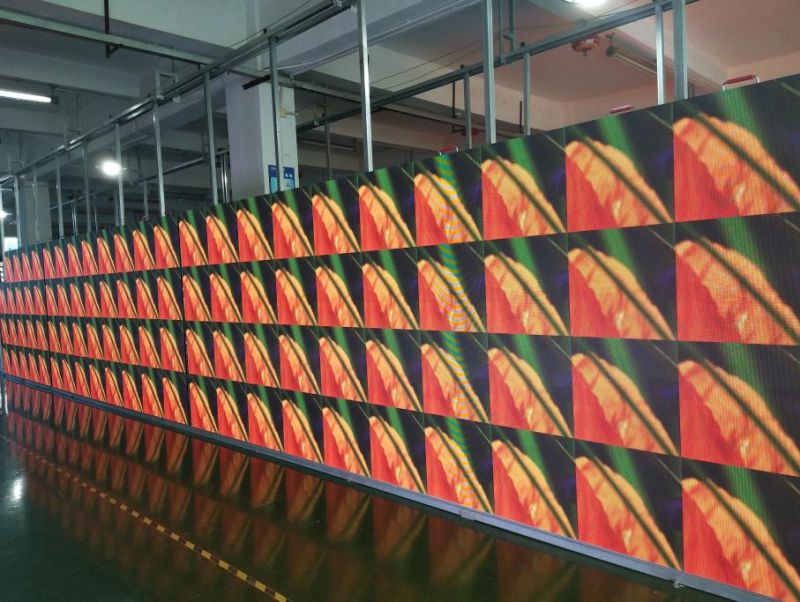

72 hours whole LED screen testing (Before shipment):

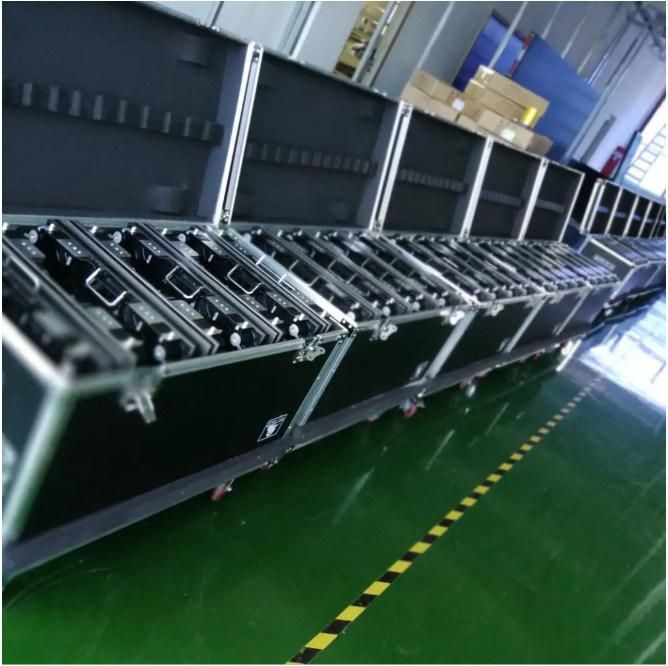

Finished LED Rental Screen Case:






Package:

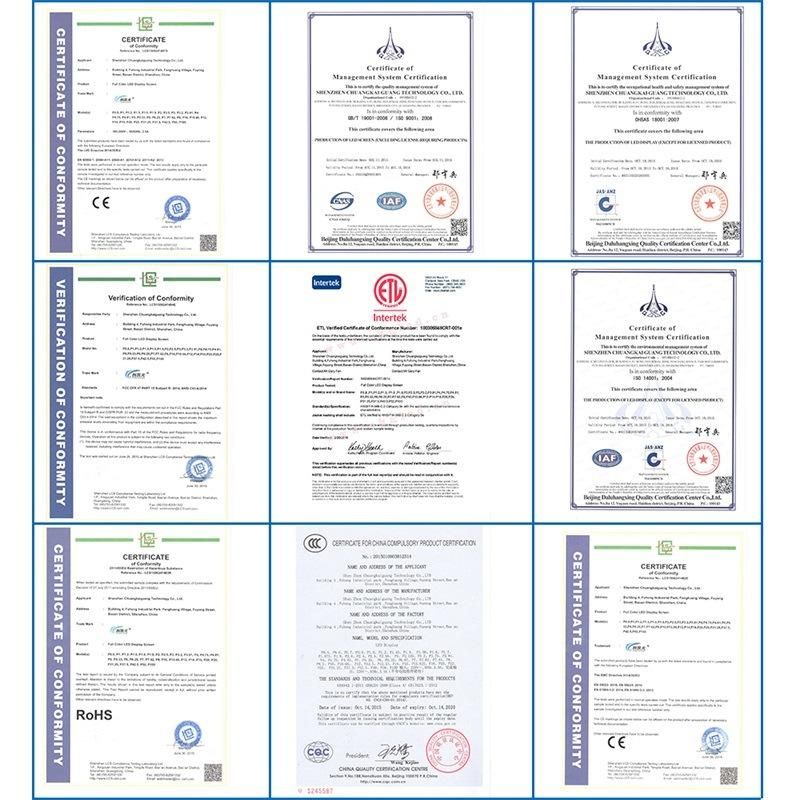

Certificates:

Q1: Are you a factory or just a trade company?
A1: Our CKGLED is a LED display factory with R&D department and production line, professional engineering team and energetic sales team. Warmly welcome to visit our HONGHUI factory and have face-to-face business talk to better understand each other. Or when you are free, we can have SKYPE VIDEO TALKING, and show our CKGLED factory.

Q2: Can you tell me why I should choose your company?
A2: Concentration makes professional. Professional achieves successful.
Our CKGLED have 8 years professional LED technical experience. We are 5 years gold supplier for China government LED project. Now, we are largely expanding our international market. From 2009 to 2017, we only do LED. Now and In the future, we still do LED. We can cooperate from trail order to establish trust step by step.

Q3: What's the warranty of your LED Display?
A3: 2-5 years warranty. And 96360hours life span. During the warranty period, we can offer you related after-sales service. Our professional engineering team are ready for your question during 6: 00-23: 30.


Q4: What's your payment term? How long is your delivery time?
A4: We accept T/T, ALIBABA Trade Assurance, Paypal, Western Union, Money Gram, and Cash. At least 30-50 % deposit in advance, and the balance should be paid before delivery. Our average Production time is 7-15 working days after receiving the deposit. If your order is rapidly urgent, we can arrange your order firstly.

Q5: How can I get technical support?
Q5: We treasure every customer that shake hands with our CKGLED. We offer you TEAMVIEWER help by Online Video and can send professional engineer to your city to offer on-site guide.

Q6: What about your service?
A6: We have a professional 8 years technical team answering your question during 6: 00-23: 30. We have an energetic and patient sales team. We can offer a complete LED design solution for your LED project before confirming the order.
We can instruct you how to use, configure your LED display, and do some maintenance with spare parts.
Also, we can send professional engineer to your city to offer on-site guide and offer training. Mostly, our LED display do not have big problems within warranty time.

Q7: Is Available to print customer required logo on your LED product?
A7: Surely it is. Please inform and confirm the logo design details with our team ahead of the production. Then, we will follow your requirements.

If you want to know more, you can freely contact Our CKGLED Team. -: )
