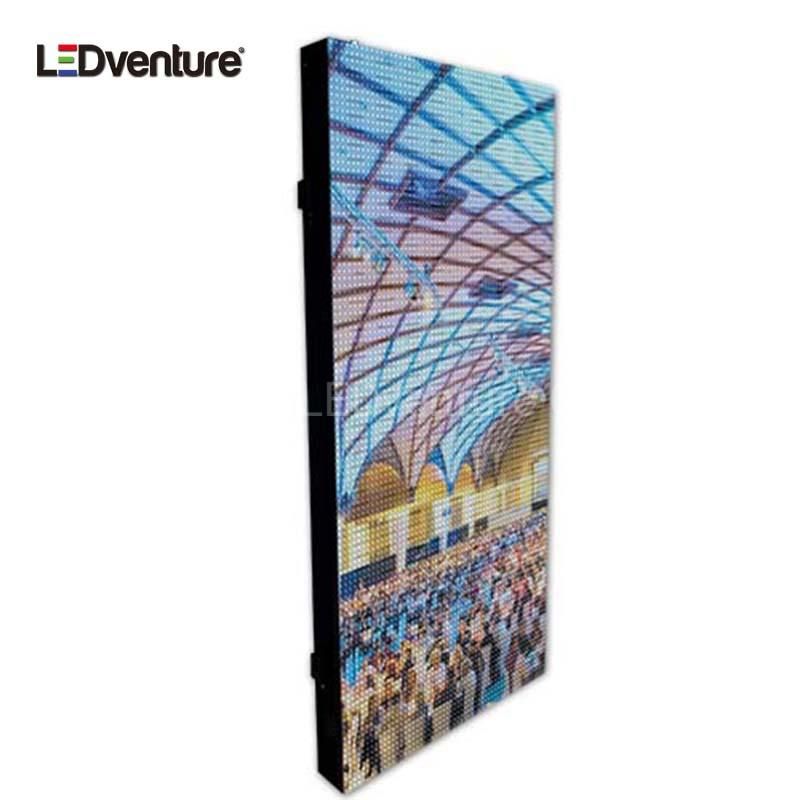

• Model NO.：CX-P8.9S
• Pixel Density：12546 Dots,M2
• Scanning Mode：1,4 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, UL, CCC, ETL

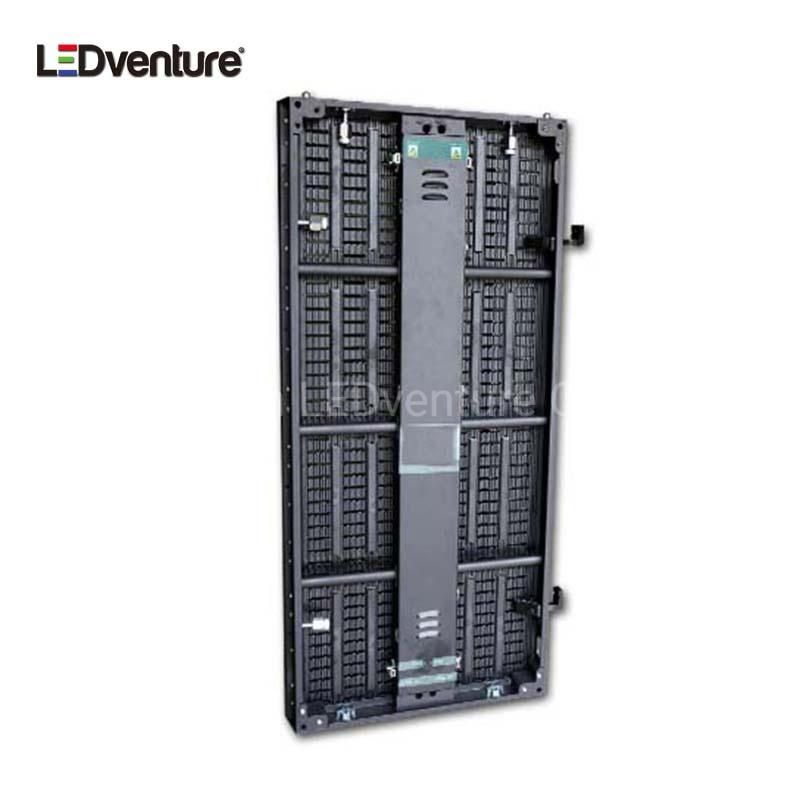

• Cabinet Material：Aluminium
• Cabinet Weight：12kg
• Brightness：3000-3500nits
• Refresh Rate：>1920Hz
• Contrast Rate：3000:1
• Voltage：AC110-240V
• LED Lamps：Epistar
• Driver IC：Mbi
• PSU：MW
• System：Nova
• Transport Package：Plywood Cases
• Specification：500x1000mm
• Trademark：LEDventure
• Origin：China
• HS Code：8528591090
• Production Capacity：2000sqm,Month

Part 3: Material Quality Level

All of our Product materials we choose all top quality levels, including the SMD, IC components, also the PCB, screws, PSU brands etc, so that during the led screen using, it helps to cut down after sale serive costs, to make sure led display screen stable and less aftersale services





Part 4: Technical Specification

Item

Indoor Outdoor Curtain Mesh LED Display Screen

Model Number

CX-P8.9S

Pixel Pitch

8.9mm

Pixel Density

12546 pixels/M2

Pixel Configuration

SMD 3 IN 1

LED Type

NS, SMD

Module Size

250x250mm

Module Resolution

28*28 pixels

Min.Viewing Distance

8m

Brightness

3000-3500nits

Viewing Angle

≤140°

Average Power Consumption

220 W/M2

Scan Mode

1/4 Scan

Protection Level

IP65

Cabinet Size

500x1000mm

Color Temperature

The brightness of R.G.B. is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements

Input Voltage

AC110-240V, 50Hz/60Hz

Refresh Rate

>1920hz

Color

65535 Levels

Horizontal/Vertical Viewing Angle

<140°

Gray Scale

16 bits

Effective Communication Distance(without relay)

Lifespan

≥100,000 hours

Environment Temperature

Storage: -40°C~+85°C  , Operation: -20 °C~+45°C

Blind Spot Rate

<0.0001(led display industry standard is less than 0.0003)

Control Mode

Video frequency synchronization

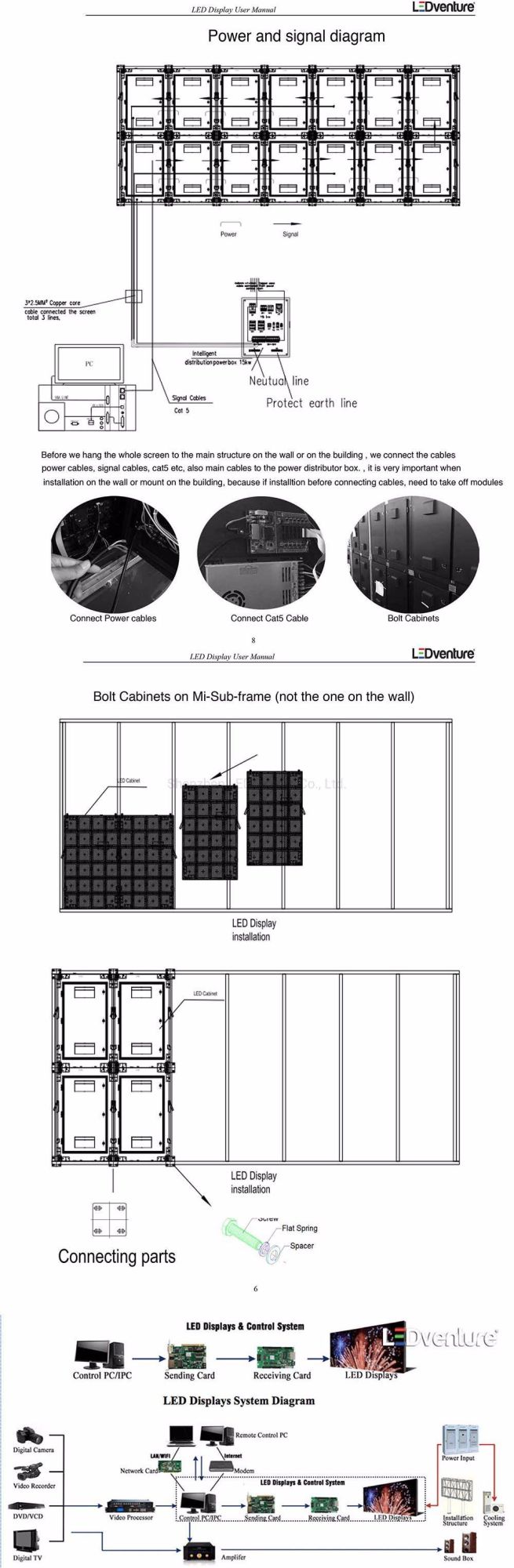

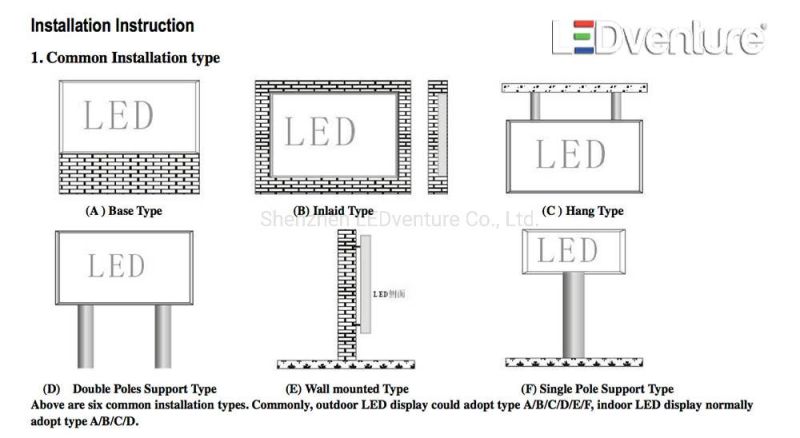

Part 5: Installation methods, outdoor front service back service LED Display screen fixed on the wall, on pillars, standing etc all available, and system hardware included sending cards sending box, processor, receiving cards etc

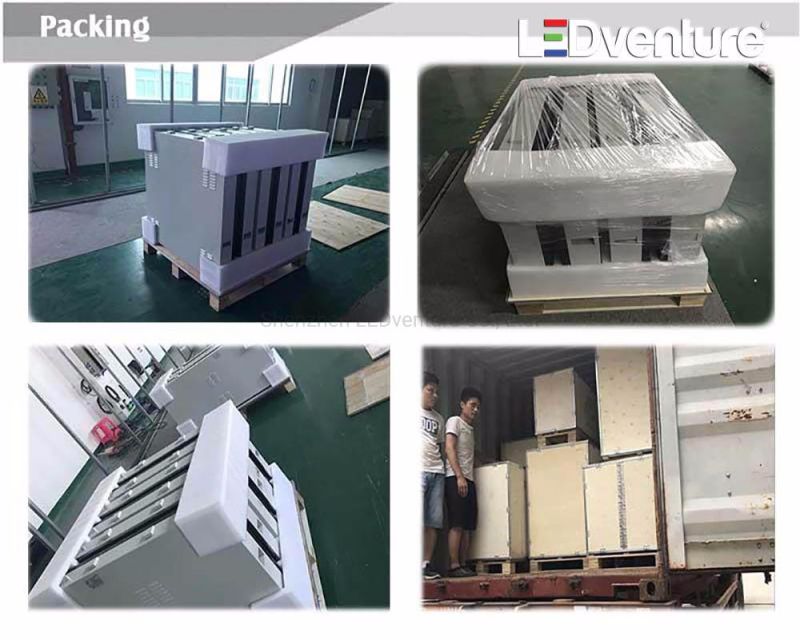

Part 6: Packing information by plywood cases, packing well and easy to load



Part 7: Certificates

ALL of our Product passed CE, EMC FCC, UL and other security tests, to ensure to meet most market laws and standard requires, and make sure the quality is top level and stable for many years use.

Part 8: About LEDventure

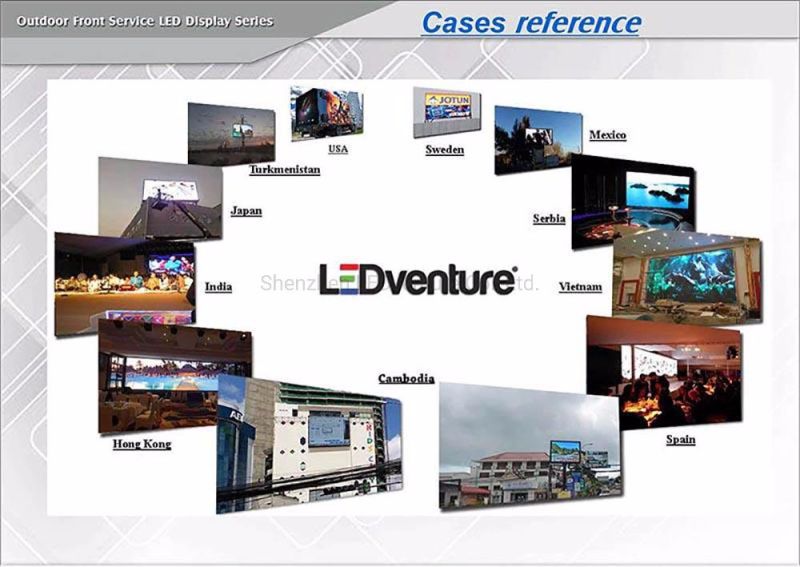

Part 9: LED Display Screen Installation Cases.

Most of our led display exported to Europe with high standards, and small percent to USA and Asia
