P3 P4 P5 P6 P8 P10 Outdoor Waterproof Full Color LED Video Wall Outdoor High Brightness LED Advertising Display Screen Panel Billboard
Shenzhen Chuangkaiguang Co., Ltd.- IP Rating:IP65
- Pixel Pitch:10mm
Base Info
- Model NO.:F1 -10mm
- Pixel Configuration:1R, 1G, 1B
- Display Function:Video Display, Image & Text Display, Text Display, Market Display
- Average Power Consumption:300W , m²
- Pixel Density:10000 dot , m²
- Scanning Mode:1,4 Scan
- Display Type:LED Video Display
- Application:Advertising
- Certification:CE, RoHS, UL, CCC, ETL
- Module Size:320mm X 160mm
- Module Resolution:32X16dots
- Cabinet Size:960mmx960mm , Customizable
- Cabinet Resolution:96X96dots
- Screen Brightness:Over 5500nits
- Cabinet Material:Steel
- Maintenance:Rear Service
- Protective Grade:IP65 Waterproof
- Screen Resolution:10000 Pixels , Sqm
- Drive Method:1,4 Scan
- Grey Scale:14 Bit
- Refresh Rate:1920Hz
- Working Voltage:AC 100V-240V
- Ave.Power Consumption:260W,Sqm
- Max.Power Consumption:780W,Sqm
- Transport Package:Wooden Case
- Specification:960mm X 960mm
- Trademark:CKGLED
- Origin:China
- HS Code:8528591090
- Production Capacity:6000sqm,Month
Description
Overview
Drive Mode: 1/4 Constant Current Drive / Horizontal Viewing Angle 140 Deg Vertical Viewing Angle 140 Deg Brightness 5500 cd/m2 Grey Scale: 14 bits Refresh Rate ≥1920 Hz Cabinet Resolution 96x96 dots Max. Power Consumption 780 W/m2 Ave. Power Consumption 260 W/m2 Cabinet Size 960x960 mm Cabinet Thickness 150 mm Cabinet Material: Steel Color >16.7 M Input Voltage AC 110V~220V+/-10% V Refresh Frame Frequency 60 Hz Protection Level: IP65 / Working Environment: Outdoor / Working Temperature -30- +70 ºC Operation humidity 10%-95% RH Certificates: CCC, CE,RoHS
Detailed Photos
Factory Workshop

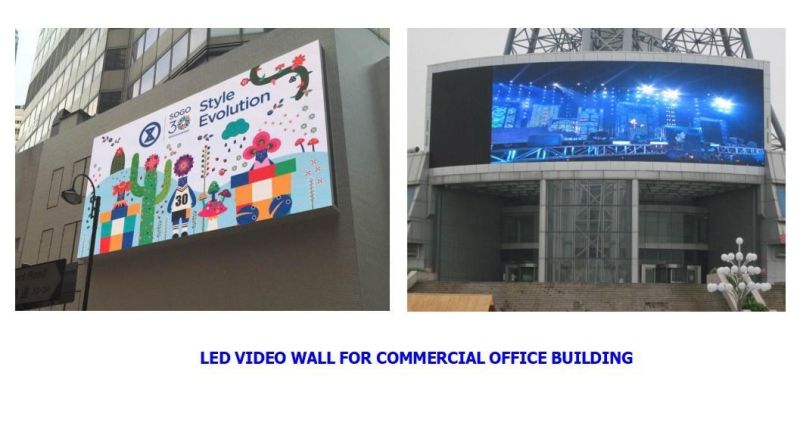

CKGLED Project Case
Certifications
After Sales Service
FAQ
Product Description
Product Parameters
Screen
