• Model NO.：UX-P2.5S
• System Operating Platform：Windows
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide
• IP Rating：IP31
• Certification：CE, RoHS, UL, CCC, ETL
• Cabinet Material：Nanocomposites
• Cabinet Weight：4.2kg
• Maintenance Mode：Front Service
• Brightness：1000nits
• Refresh Rate：1920-3840Hz
• Voltage：AC110-240V
• Contrast Rate：3000:1
• LED Lamps：Epistar
• Driver IC：Mbi
• PSU：MW
• System：Nova
• Transport Package：Plywood Cases
• Specification：480x480mm
• Trademark：LEDventure
• Origin：China
• HS Code：852859109
• Production Capacity：2000sqm,Month

Part 3: Material Quality Level

All of our Product materials we choose all top quality levels, including the SMD, IC components, also the PCB, screws, PSU brands etc, so that during the led screen using, it helps to cut down after sale serive costs, to make sure led display screen stable and less aftersale services.

Part 4: Technical Specification

Item

Indoor Ultra Light LED Display Screen

Model Number

UX-P2.5S

Pixel Pitch

2.5mm

Pixel Density

160,000 pixels/M2

Pixel Configuration

SMD 3 IN 1

LED Type

NS, SMD

Module Size

160x160 mm

Module Resolution

64*64 pixels

Min.Viewing Distance

2.5m

Brightness

1000 nits

Viewing Angle

≤140°

Average Power Consumption

100 W/pc

Scan Mode

1/16 Scan

Protection Level

IP31

Cabinet Size

480x480mm

Color Temperature

The brightness of R.G.B. is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements

Input Voltage

AC110-240V, 50Hz/60Hz

Refresh Rate

1920-3840Hz

Color

65535 Levels

Horizontal/Vertical Viewing Angle

<140°

Gray Scale

16 bits

Effective Communication Distance(without relay)

Lifespan

≥100,000 hours

Environment Temperature

Storage: -40°C~+85°C  , Operation: -20 °C~+45°C

Blind Spot Rate

<0.0001(led display industry standard is less than 0.0003)

Control Mode

Video frequency synchronization

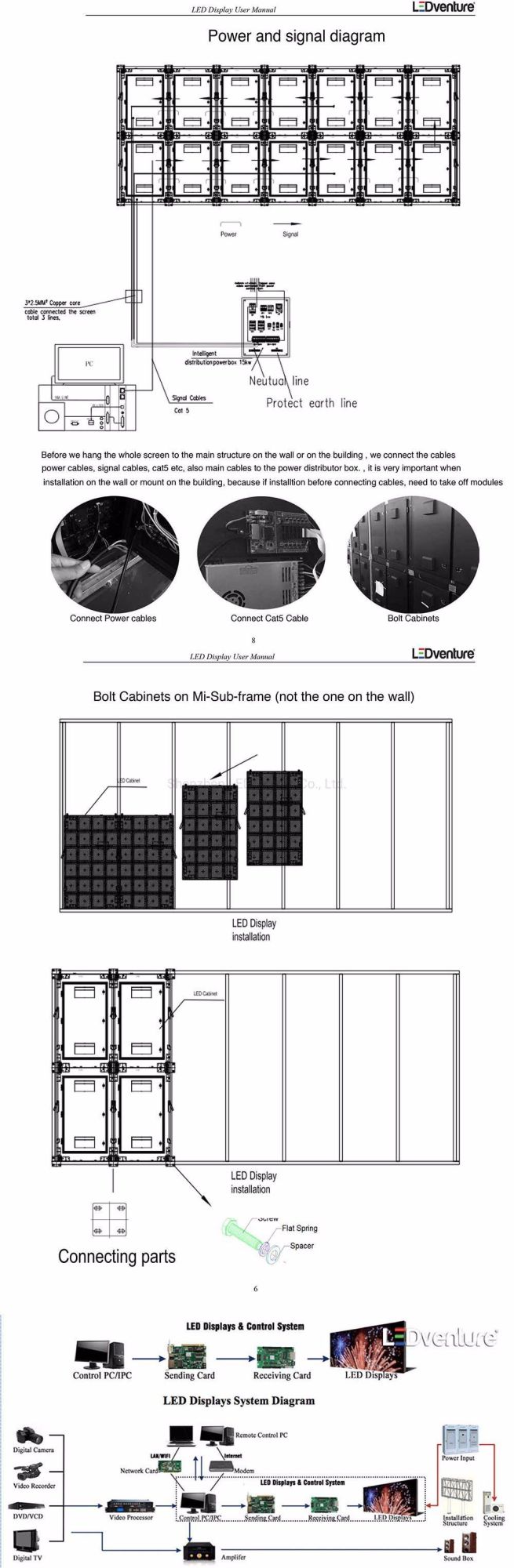

Part 5: Installation methods, outdoor front service back service LED Display screen fixed on the wall, on pillars, standing etc all available, and system hardware included sending cards sending box, processor, receiving cards etc





Part 6: Packing information by plywood cases, packing well and easy to load



Part 7: Certificates

ALL of our Product passed CE, EMC FCC, UL and other security tests, to ensure to meet most market laws and standard requires, and make sure the quality is top level and stable for many years use.

Part 8: About LEDventure

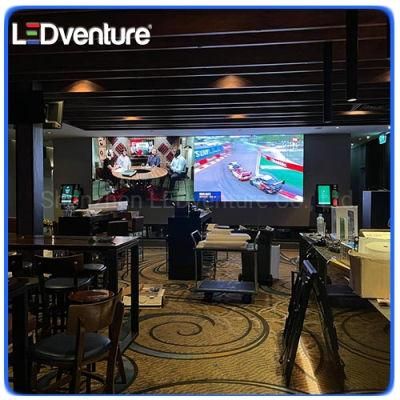

Part 9: LED Display Screen Installation Cases

Most of our led display exported to Europe with high standards, and small percent to USA and Asia
