P10 Outdoor DIP Full Color LED Display Panel
Shenzhen FWS Technology Co., Ltd.- Tube Chip Color：Full Color
- IP Rating：IP65
- Pixel Pitch：10mm
- Pixel Configuration：1R, 1G, 1B
- Display Function：Video Display
- Average Power Consumption：300W , m²
Base Info
- Model NO.：p10
- Pixel Density：8736 Dots,Sqm
- Scanning Mode：1,8 Scan
- Display Type：LED Video Display
- Application：Stage Performance, Advertising, Shopping Guide
- Certification：CE, RoHS, UL, CCC, ETL
- Warranty Period：2 Years
- Module Size：320mm*160mm
- Color Temperature：6500k-9500k
- Deliver Time：15-20 Days
- Life Span：100000 Hours
- Drive Type：Constant Drive
- Brightness：6500
- Package Mode：DIP
- Module Ponit：32*16
- LED Lamp：Kinglight Lamp
- Transport Package：Waterproof Casing
- Specification：960mm*960mm
- Trademark：FWS
- Origin：Shenzhen China
- HS Code：9405409000
- Production Capacity：25000sqm,Month
Description
Technical parameterPanel Dimension (w) 320mm*160mmH) Pixel pitch 10mm Pixel Density 8736 DOTS/M2 Pixel resolution 28*16 dots Pixel configuration 1R1G1B LED specification DIP 546(triad) Average power 35W MOdule thickness 22mm Port type HUB08-A Panel weight 0.37 KG Cabinet&Bracket Cabinet size 960mm*960mm Weight of cabinet 35 KG/Sqm Best viewing distance 110/55 Thermal discharge fan 2pcs Best viewing angle 8-50 Meter Module quantity 18 pcs Panel power supply 5V40A Screen power supply AC220V-AC250V Electric current ≤20 mA Max power ≤1000 W/Square Working temperature -20ºC+50ºC±10% Viewing Angle 110ºC~110ºC Relative humidity 10%-95% Average power 500 W/Square Tehnical parametr Driving device Constant current driving Drive type 1/8 Scanning Refresh frequency >300HZ Display color 4096*4096*4096 Brightness 3500 mcd/M2 Control Method synchronized with computer monitor Life span 100000 Hours Communicaion distance <100 Meter

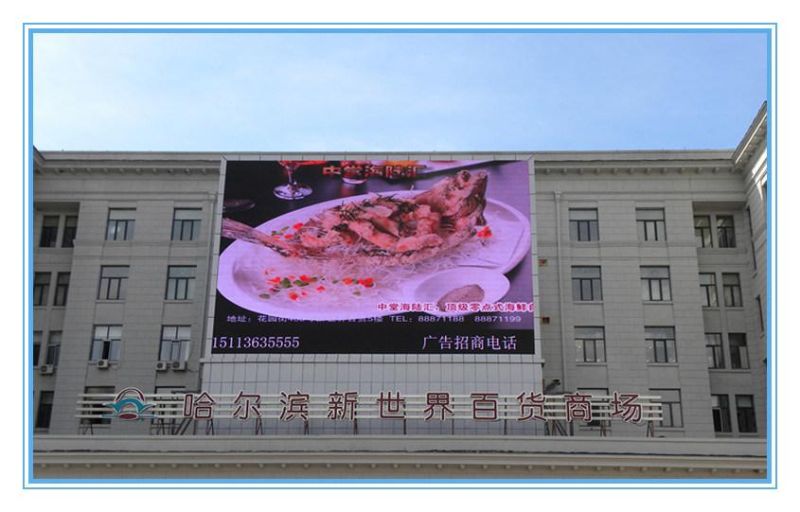

Effect Show
(LED stage display ,LED Outdoor video wall , Wedding LED display,The stage LED electronic screen,LED large screen full color display,advertising led display,outdoor led display,indoor led display)

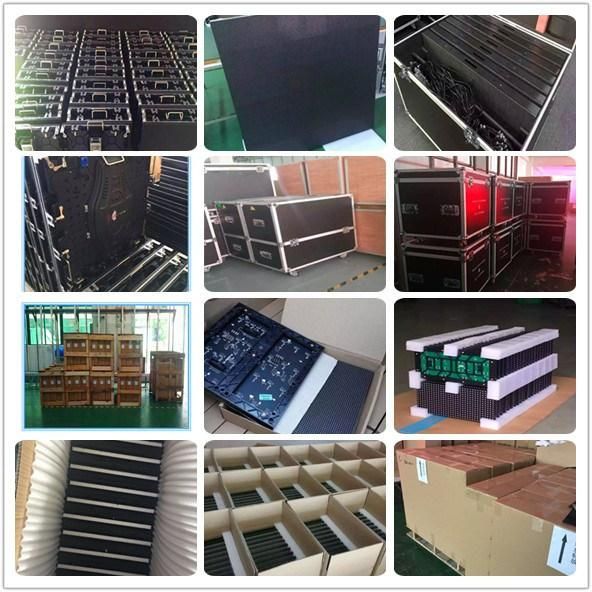

Packaging&shipping
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible.

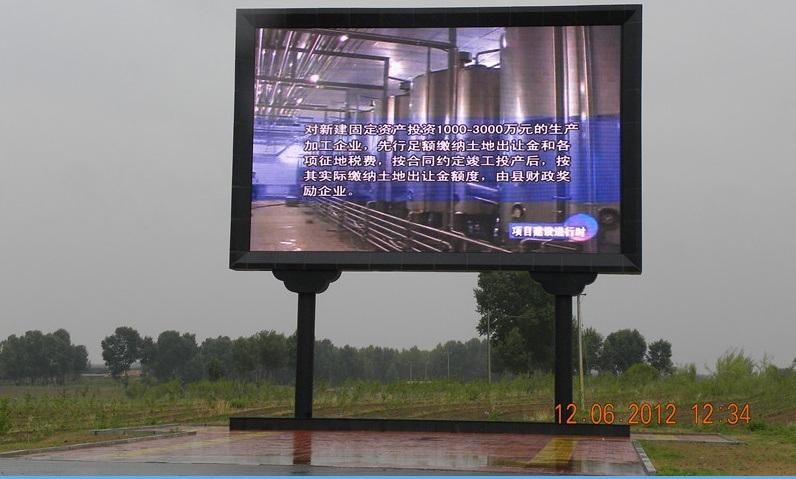

Effect Show
(LED stage display ,LED Outdoor video wall , Wedding LED display,The stage LED electronic screen,LED large screen full color display,advertising led display,outdoor led display,indoor led display)
Packaging&shipping
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible.
