• Model NO.：indoor P4
• System Operating Platform：WIN XP
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide, Stage
• IP Rating：IP20
• Certification：CE, RoHS, FCC
• Module Resolution：64*32
• Brightness：0-1000 Adjustable
• Gray Scale：16 Bit
• Viewing Angle：140 Degree
• Transport Package：Carton, Wooden Carton, Flight Case

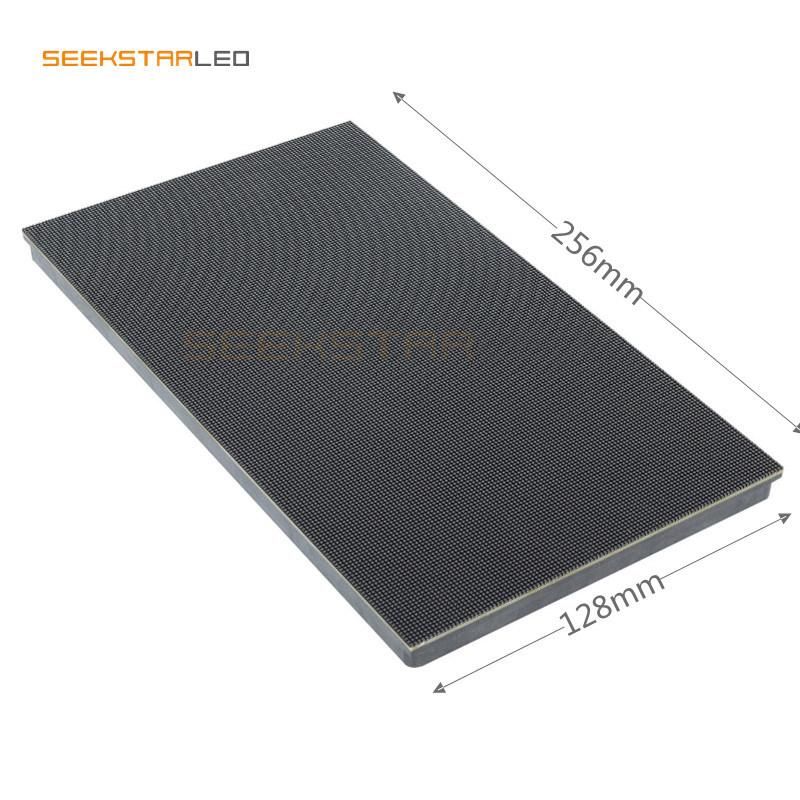

• Specification：256x128mm
• Trademark：Seekstarled
• Origin：China
• HS Code：8528591090
• Production Capacity：1000 Sqm,Month

Basic Info.

Model NO. indoor P4 System Operating Platform WIN XP Display Type LED Video Display Application Stage Performance, Advertising, Shopping Guide, Stage IP Rating IP20 Certification CE, RoHS, FCC Module Resolution 64*32 Brightness 0-1000 Adjustable Gray Scale 16 Bit Viewing Angle 140 Degree Transport Package Carton, Wooden Carton, Flight Case Specification 256x128mm Trademark Seekstarled Origin China HS Code 8528591090 Production Capacity 1000 Sqm/Month

Product Description

Description:

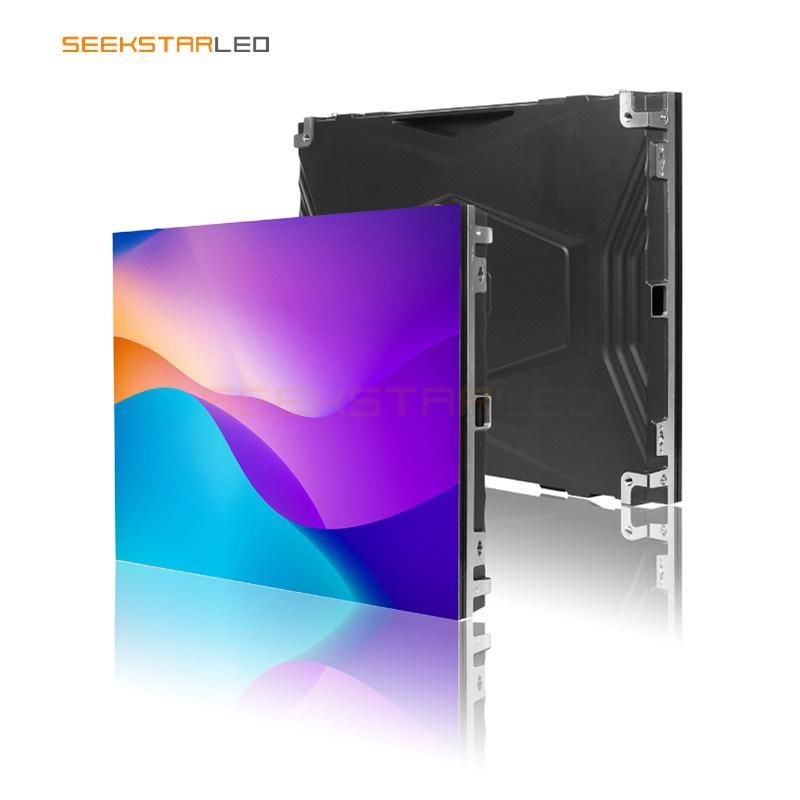

Indoor P4 Full Color LED Display Billboard Video Screen

LED is the abbreviation for light emitting diode. LEDs are arranged in vertically and horizontally with a stable pitch that forms LED matrix LED Display Screen. Each of the LED Display has a corresponding brightness control circuit. The computer controls the circuit, which affects the brightness of each LED and then forms the image we want in the LED display.

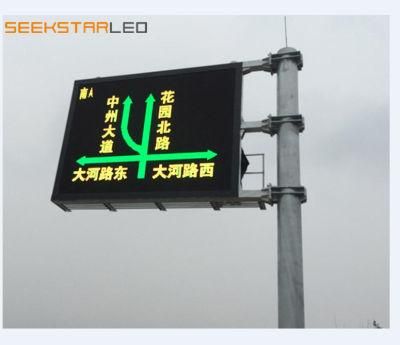

LED display screens are widely used in government agencies for government affairs, stations, banks, taxation, post and telecommunications, hospitals, customs, securities markets, bidding markets, schools, factories, ports, stadiums, airports, industry and commerce, taxation, customs, monitoring centers and advertising. The entertainment industry, and real estate trading centers and other window industries that need publicity, as well as highways, urban traffic management, urban environmental index display, etc.



Specification:

Product Item	Indoor P2.5	Indoor P3	Indoor P4	Indoor P5	Indoor P6	Indoor P10
Pixel Pitch	2.5mm	3mm	4mm	5mm	6mm	10mm
LED Type LED	RGB 3in1	RGB 3in1	RGB 3in1	RGB 3in1	RGB 3in1	RGB 3in1
LED Life LED	100,000 hours	100,000 hours	100,000 hours	100,000 hours	100,000 hours	100,000 hours
Configuration	SMD1515/SMD2121	SMD2121	SMD 2121	SMD 2121	SMD3528	SMD3528
Module Size	320x160	192x192	256x128	320x160	192x192	320X160
Module Resolution	128*64	64*64	64*32	64*32	32x32	32x16
Pixels Density (dots)	160000	111111	62500	40000	27777	10000
Brightness (cd/sqm)	0-1000 adjustable	0-1000 adjustable	0-1000 adjustable	0-1000 adjustable	0-1000 adjustable	0-1000 adjustable
Viewing Distance	≥2m	≥3m	≥4m	≥5m	≥6m	≥10m
Viewing Angle	140°/160°	140°/160°	140°/160°	140°/160°	140°/160°	140°/160°
Refresh Rate	≥1920HZ/≥3840HZ	≥1920HZ	≥1920HZ	≥1920HZ	≥1920HZ	≥1920HZ
Gray Scale	16bit. Red, Green and Blue  each 16K	16bit. Red, Green and Blue  each 16K	16bit. Red, Green and Blue each 16K	16bit. Red, Green and Blue  each 16K	16bit. Red, Green and Blue  each 16K	16bit. Red, Green and Blue  each 16K
Color Temperature	3200K-9300K adjustable	3200K-9300K adjustable	3200K-9300K adjustable	3200K-9300K adjustable	3200K-9300K adjustable	3200K-9300K adjustable
Scan Mode	1/32scan	1/32scan	1/16scan	1/16scan	1/16scan/1/8scan	1/8scan
Cabinet Material	die-casting aluminum	die-casting aluminum	die-casting aluminum	die-casting aluminum	die-casting aluminum	die-casting aluminum
Cabinet Size (mm)	640x640/480x480	576x576/768x768	512x512/768x768	640x640/960x960	576x576/960x960	640x640/960x960
Cabinet Weight(kg)	13kg	11kg	19.5kg	28.8kg	28.8kg	28.8kg
Max Consumption (W/sqm)	650	650	650	650	800	800
Ave Consumption (W/sqm)	160-350	160-350	160-350	160-350	160-350	160-350
Supply Voltage	AC220V/50HZ; AC110V/60HZ	AC220V/50HZ; AC110V/60HZ	AC220V/50HZ; AC110V/60HZ	AC220V/50HZ; AC110V/60HZ	AC220V/50HZ; AC110V/60HZ	AC220V/50HZ; AC110V/60HZ
Storage Temperature	-35ºC~+85ºC	-35ºC~+85ºC	-35ºC~+85ºC	-35ºC~+85ºC	-35ºC~+85ºC	-35ºC~+85ºC
Working Temperature	-20ºC~+50ºC	-20ºC~+50ºC	-20ºC~+50ºC	-20ºC~+50ºC	-20ºC~+50ºC	-20ºC~+50ºC
Operating Humidity	10%-90%	10%-90%	10%-90%	10%-90%	10%-90%	10%-90%
IP Rating	Dust Proof(rear side IP5X)	Dust Proof(rear side IP5X)	Dust Proof(rear side IP5X)	Dust Proof(rear side IP5X)	Dust Proof(rear side IP5X)	Dust Proof(rear side IP5X)
Display Capacity	Text, Graph and Video	Text, Graph and Video	Text, Graph and Video	Text, Graph and Video	Text, Graph and Video	Text, Graph and Video
Control System	LINSN,Nova-star Colorlight (adjustable)	LINSN,Nova-star Colorlight (adjustable)	LINSN,Nova-star Colorlight (adjustable)	LINSN,Nova-star Colorlight (adjustable)	LINSN,Nova-star Colorlight (adjustable)	LINSN,Nova-star Colorlight (adjustable)
Control Mode	Synchronous Control Mode	Synchronous Control Mode	Synchronous Control Mode	Synchronous Control Mode	Synchronous Control Mode	Synchronous Control Mode

Features:

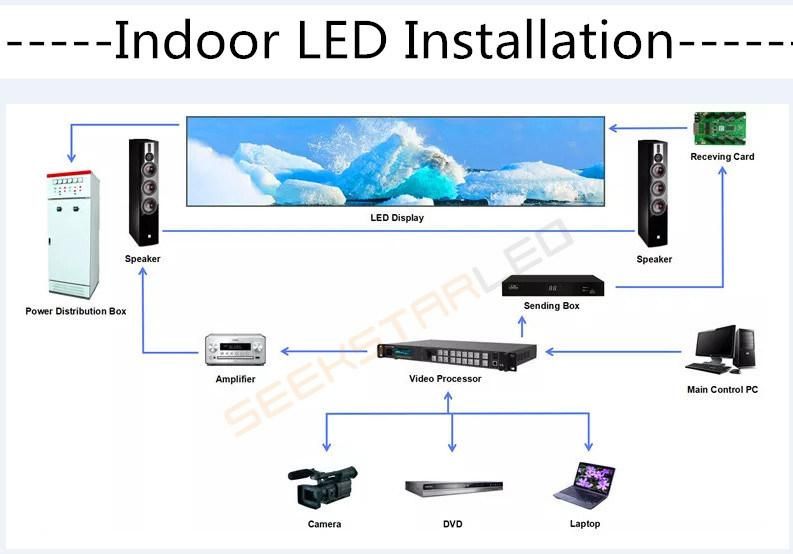

Installation:

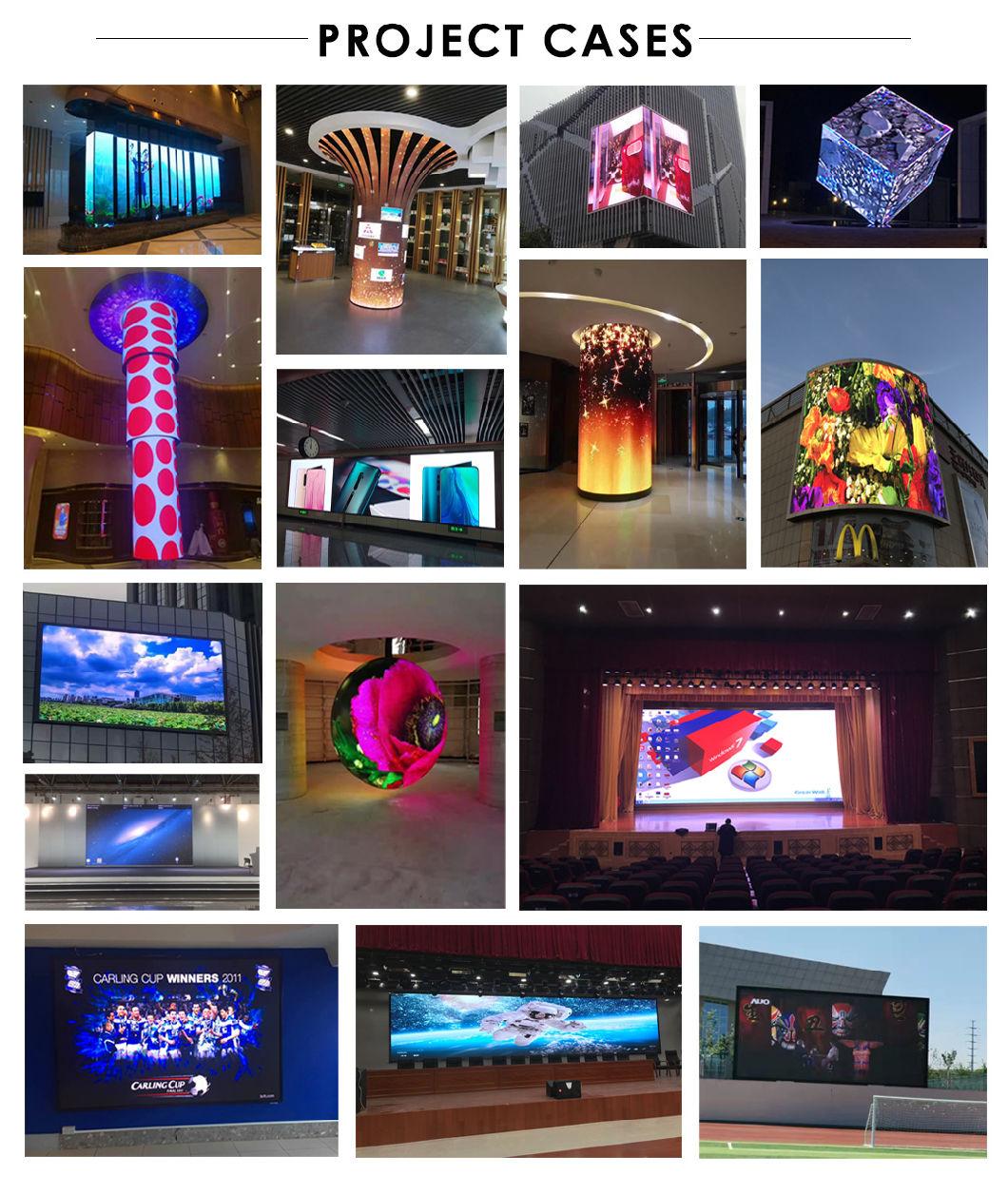

Application:
