• Model NO.：LW-RI2.5
• System Operating Platform：WIN XP
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide
• IP Rating：IP43
• Certification：CE, RoHS, UL, CCC, ETL
• Module Size：160mm*80mm
• Pixel Configuration：1r1g1b
• Package Mode：SMD2121
• Cabinet Size：480mm*480mm
• G.Weight：13.3kg
• DOT Pitch：2.5 mm
• Brightness of White Balance：Up1700CD,M2
• Average Power Consumption：500W,S
• Max Power Consumption：Down 2000W,S
• Thickness：85mm
• Transport Package：Air Box & Carton Box & Wooden Box
• Specification：UL, CCC, CE, RoHS
• Trademark：led world, OEM, ODM
• Origin：Shenzhen City, Guangdong Province, China
• HS Code：8528591090
• Production Capacity：10000sqm,Month

ItemIndoor P2.5 SMD 3in1 led display technical parametersUnit ModuleItemParameterModel NumberP2.5-16SModule size160mm*80mmPixel pitch2.5mmPixels Density160000dots/m2Pixel configuration1R1G1BPackage modeSMD2121Pixel resolution64dots(W)*32dots(H)Max Power consumption20WWeight0.12kgDrive typeConstant driveScan mode1/24scan 1/24scanPort typeHUB75-AThe brightness of white balance≥1700cd/m2Package of Carton556*547*230mmQuantity80 pcsG.weight13.3kgLED Display Unit ModuleDimension480mm*480mmQuantity of Module18Power supply5V/60AThermal dischargefan 2pcsPixel per cabinet192*192Best viewing distance3M~18MBest viewing distance160°(W) 120°(H)Temperaturestorage:-35ºC~+85ºCworking:-20ºC~+50ºCOperation humidity10%-95%Thickness85mmPowerWorking voltageAC220V±10%Average Power consumption500W/S     Max.Power consumption≤2000W/SCurrent≤20mA(single LED)Control systemCPUPentium4 or aboveOperation systemWIN98/2000/NT/XPControl methodSynchronizationMain technical  parameterDriving deviceConstant current driverRefresh frequency≥400HZGreyscale/colors256levels of each color(RGB)/16.7M colorsMTBF≥9000hoursPower switchAutomatic switch

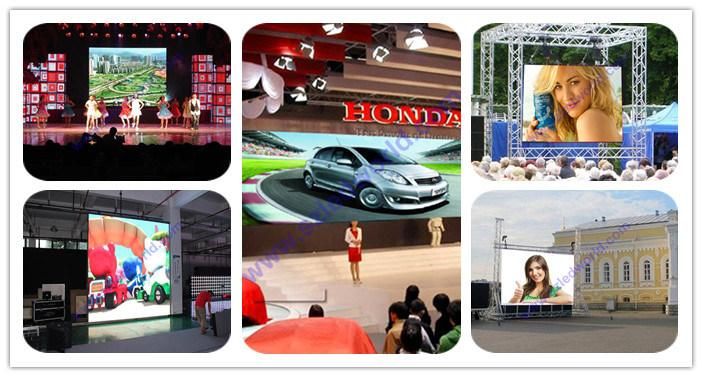

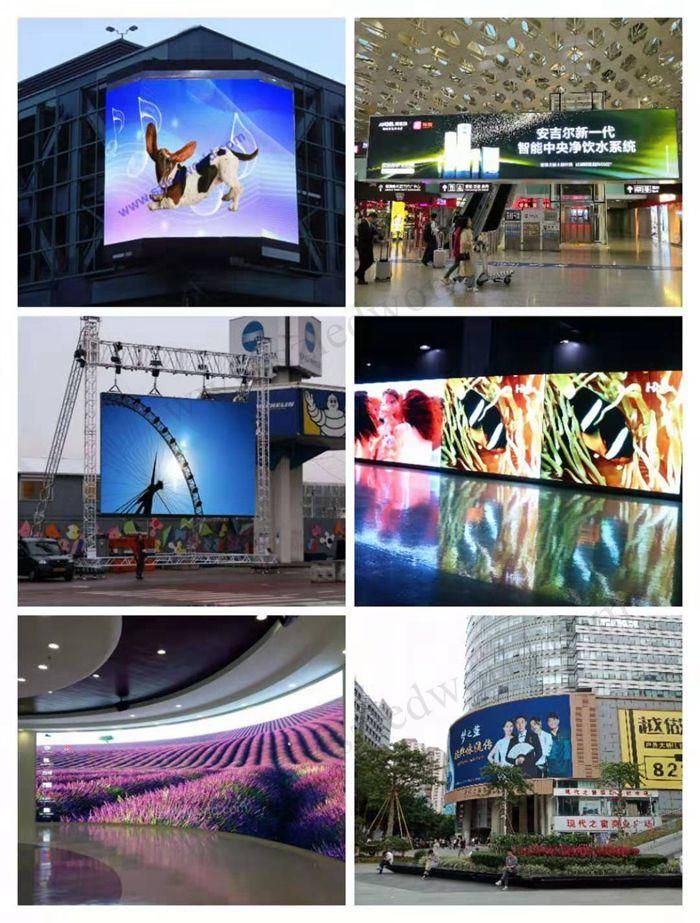

P2.5 led display Project case:

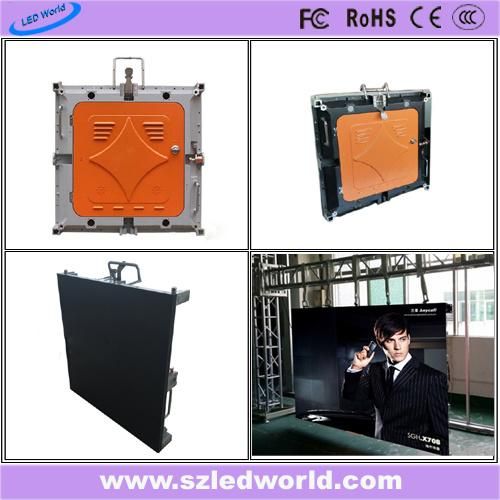

product detail:

Our company:
Shenzhen LED World CO., LTD  was founded in 2009, focusing on the LED technology research and LED full-color display production, sales, and engineering services for the integration of private high-tech enterprises. The company has professional production equipment and excellent technology, industry veteran, high-quality, high standards of the modern management team, a high level of professional and technical developer, has many years of operating experience and well-trained, a significant number of skilled workers. Company strict implementation of  7 S management standard professional management standards, has passed 3C, CE, FCC, RoHS, ISO9001-2009 quality system certification, reliable quality, advanced technology, automation of form a complete set of products and continuous development of our roots. products are exported to USA, Mexico, Greece, Spain, Italy, UK, Uganda, Nigeria, Russia, India, Turkey, Thailand, Vietnam, Brazil, Australia, etc more than 20 countries and regions, and gained good reputation from the clients.

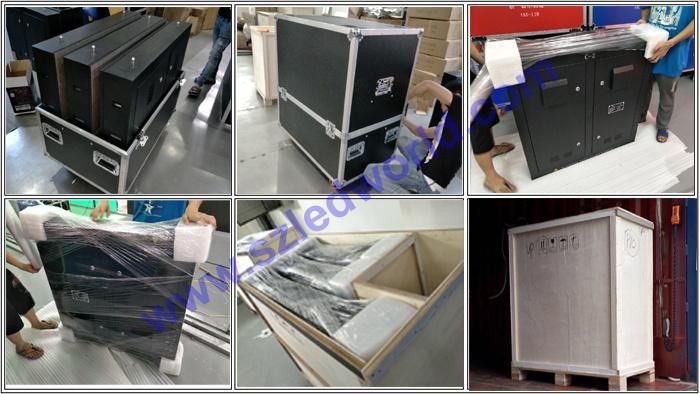

Workshop and Packing:



Package:


Certification:

After-sales maintenance
1.Receive the cargo
Make sure the cargo in sealing condition and the cargo storage temperature
between - 30ºC  and 60ºC when you receive the goods from the customs
2. Install and use the product
Please adopt preheating model to light it up and keep 30% brightness for 0.5-2 hours when you use it. Keep it work 8 hours or above continually per day will be better. It will be better to use it at least once a week.
3. Cleaning
Ensure to use a soft brush to clean the display surface and PROHIBIT any liquid when doing the cleaning.
