Full Color Indoor Outdoor Advertising Rental Curved Digital Mobile Flexible SMD Poster Window TV LED Billboard with P4 P5 P6 P8 P10

Shenzhen LEDventure Co., Ltd.
  • Tube Chip Color：Full Color
  • IP Rating：IP65
  • Pixel Pitch：10mm
  • Pixel Configuration：1R, 1G, 1B
  • Display Function：Video Display, Image & Text Display, Text Display, Market Display
  • Average Power Consumption：350W , m²

Base Info

  • Model NO.：P4 P5 P6 P8 P10
  • Pixel Density：10000 dot , m²
  • Scanning Mode：1,2 Scan
  • Display Type：LED Video Display
  • Application：Advertising
  • Certification：CE, RoHS, UL, CCC, ETL
  • Brightness：>6500nits
  • LED Lamps：SMD 3 in 1
  • Driver IC：Constent Current
  • PSU：5V 60A
  • Cabinet：Alu,Steel
  • IP Rate：IP65,IP54
  • System：Nova,Linsn,Colorlight
  • Refresh Rate：1920-3840Hz
  • Contrast Rate：3000:1
  • Voltage：AC110-240V
  • Viewing Distance：3-10meters
  • Software Flatform：Windows
  • Color Range：16bits
  • Grey Scale：256 Levels
  • Cabinet Color：Black ,Grey (Options)
  • Transport Package：Plywood Cases
  • Specification：960X960mm
  • Trademark：LEDventure
  • Origin：China
  • HS Code：8528591090
  • Production Capacity：2000sqm,Month

Description

ItemP3.91 P4.44 P4.81 P5.33 P6.67 Full Color Outdoor Front Service LED Advertising Display ScreenPixel Pitch3.91mm-10mmPixel Density(pixels/M2)10000-65536 pixelsPixel ConfigurationSMD 3 IN 1LED TypeSMD 3 in 1Module size(mm)320x320mm (options) 250x250mmModule Resolution(pixels)32*32 -64x64 pixelsMin.Viewing Distance(m)3-10mBrightness(nits)>6500Viewing Angle(degree)≤140°Average Power Consumption(W/M2)400Scan ModeConstant currentProtection LevelIP65/IP54Cabinet Size(mm)960x960mm / 750x500mmColor TemperatureThe brightness of R.G.B. is adjustable according to software 100level;
Color temperature is adjustable in terms of detailed requirementsInput VoltageAC110-240V, 50HZ|60hzRefresh Rate1920-3840HZColor65535 LevelsHorizontal/Vertical viewing angle<140°Gray Scale16 bitsEffective Communication Distance(without relay)<100 metersLifespan≥100,000 hoursEnvironment TemperatureStorage: -40°C~+85°C  , Operation: -20 °C~+45°CBlind Spot Rate<0.0001(led display industry standard is less than 0.0003)Control ModeVideo frequency synchronization

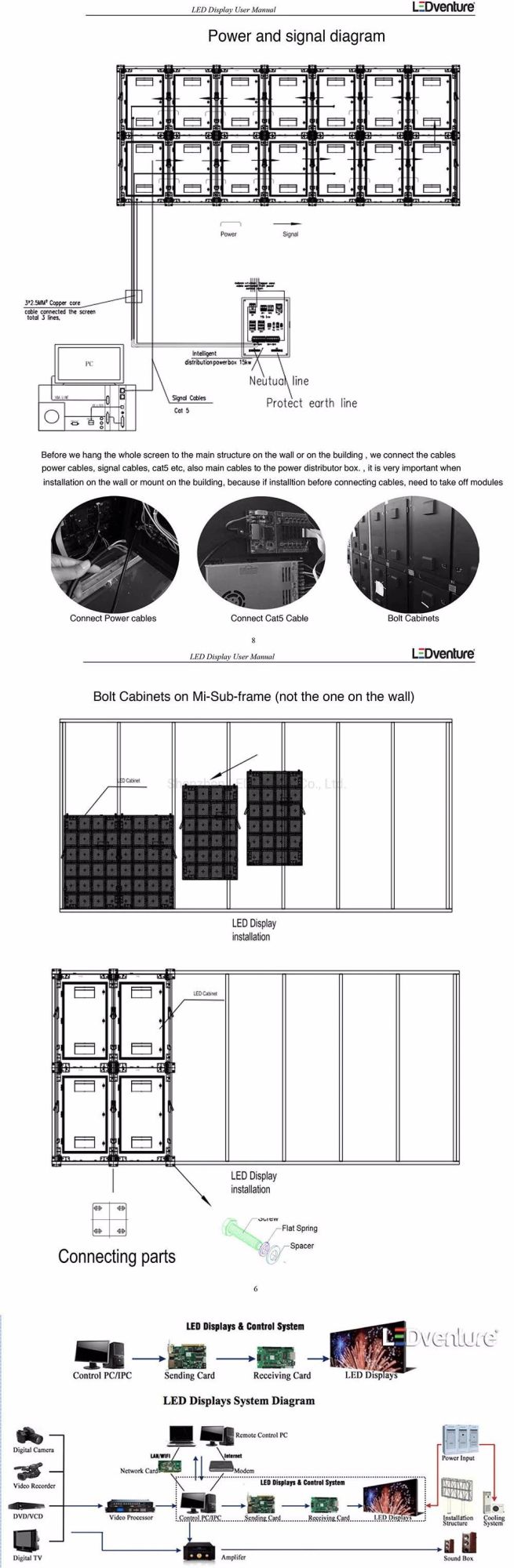

Part 5: Installation methods, outdoor front service back service LED Display screen fixed on the wall, on pillars, standing etc all available, and system hardware included sending cards sending box, processor, receiving cards etc.

Full Color Indoor Outdoor Advertising Rental Curved Digital Mobile Flexible SMD Poster Window TV LED Billboard with P4 P5 P6 P8 P10
Full Color Indoor Outdoor Advertising Rental Curved Digital Mobile Flexible SMD Poster Window TV LED Billboard with P4 P5 P6 P8 P10

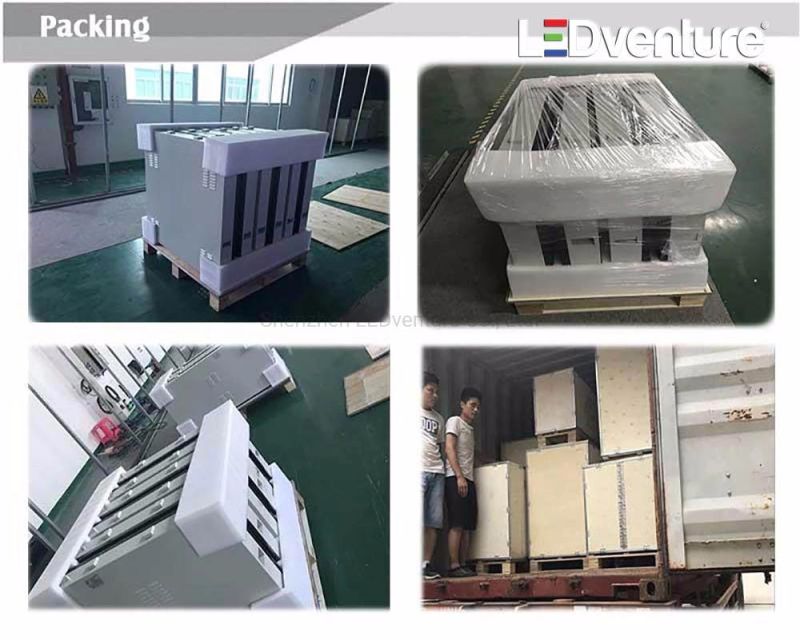

Part6: Packing information by plywood cases, packing well and easy to load,
Full Color Indoor Outdoor Advertising Rental Curved Digital Mobile Flexible SMD Poster Window TV LED Billboard with P4 P5 P6 P8 P10

Part7: Certificates.

ALL of our Product passed CE, EMC FCC, UL and other security tests, to ensure to meet most market laws and standard requires, and make sure the quality is top level and stable for many years use.
Full Color Indoor Outdoor Advertising Rental Curved Digital Mobile Flexible SMD Poster Window TV LED Billboard with P4 P5 P6 P8 P10

Part8: About LEDventure.


Full Color Indoor Outdoor Advertising Rental Curved Digital Mobile Flexible SMD Poster Window TV LED Billboard with P4 P5 P6 P8 P10

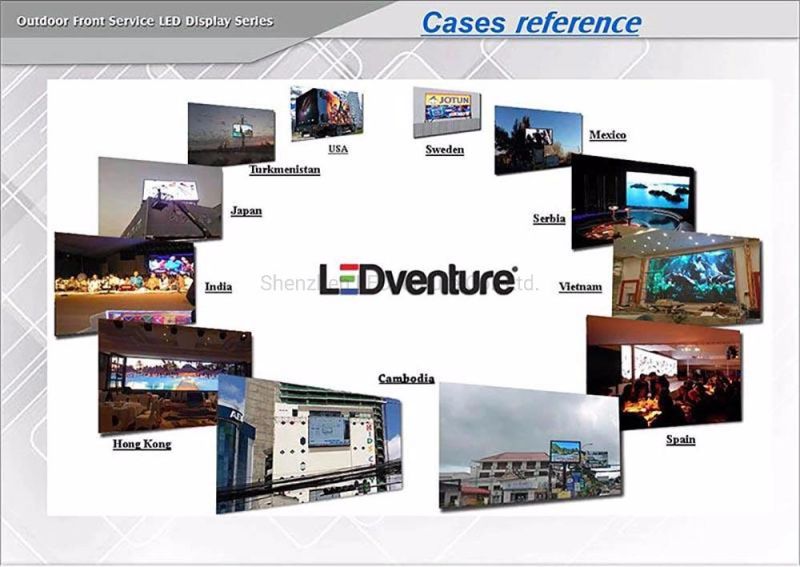

Part9 : LED display screen installation cases.

Most of our led display exported to Europe with high standards, and small percent to USA and Asia,
Full Color Indoor Outdoor Advertising Rental Curved Digital Mobile Flexible SMD Poster Window TV LED Billboard with P4 P5 P6 P8 P10

Full Color Indoor Outdoor Advertising Rental Curved Digital Mobile Flexible SMD Poster Window TV LED Billboard with P4 P5 P6 P8 P10
