LED Display

Home > Product > Indoor LED Display

4 Inch 7 Segment Display with 8 LEDs Per Seg with RoHS From Expert Manufacturer

Ningbo Lightkey Electronic Technology Co., Ltd.
  • Tube Chip Color：Single Color
  • Display Function：Numbers and Some Alphabets
  • Pixel Pitch：4mm
  • Pixel Configuration：7 Segments and Dp
  • Pixel Density：7 Segments,PC
  • Scanning Mode：Static Scan

Base Info

  • Model NO.：LD40011C,D
  • System Operating Platform：Win
  • Display Type：Segment LED Display
  • Application：Shopping Guide, Meters and Instruments
  • IP Rating：IP0
  • Certification：RoHS, Reach
  • Outline Dimensions：90.00X122.00X15.00mm
  • Digit Height：4 Inch(101.6mm)
  • Emitting Color：Single Color
  • Dp Number：1PC
  • Digit Number：1 Digit
  • Chip Matrial：4-Element
  • Transport Package：EPE Foam and Carton
  • Specification：RoHS, REACH
  • Trademark：LIGHTKEY
  • Origin：China
  • HS Code：8531200000
  • Production Capacity：1000000PCS,Year

Description

Overview Product Name

Detailed PhotosFeatures

Available Options

Selection Guide

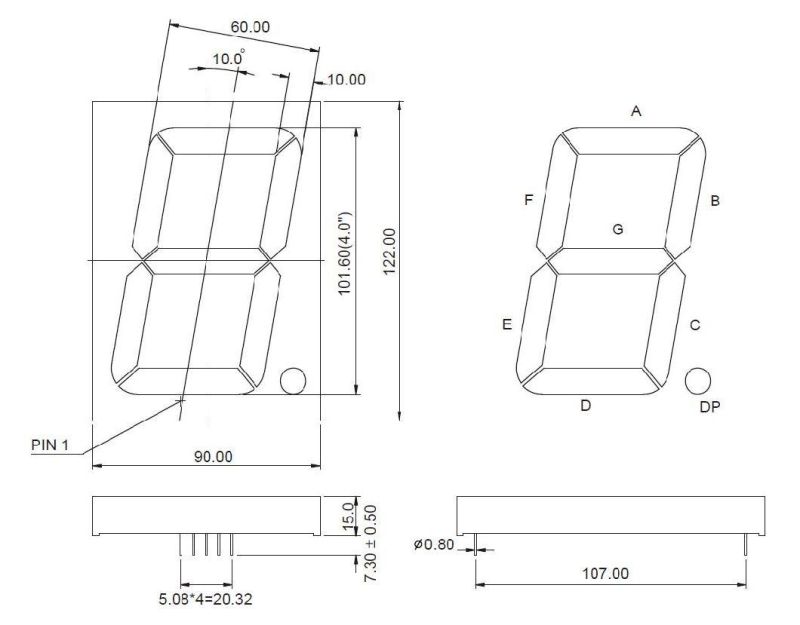

Single Digit 7 Segment LED Display, Digit Height: 101.60mm(4.00inch), External Dimensions: 90.00x122.00x15.00mm (L x W x H )Part No.ChipIv@IF=20mAIv@IF=20mACCCAMaterialColorWLDOne SegOne DPMin.Typ.Min.Typ. LD40011CR LD40011DRGaAlAsSuper Red64048601215 LD40011CD LD40011DDGaAlAsHi-Red6401081502737.5 LD40011CO LD40011DOGaAsPOrange625425410.513.5 LD40011CY LD40011DYGaAsPYellow58848601215 LD40011CG LD40011DGGaPGreen568425410.513.5 LD40011CUR LD40011DURAlGaInPUltra Red6401802704567.5 LD40011CUO LD40011DUOAlGaInPUltra Orange62527036067.590 LD40011CUA LD40011DUAAlGaInPUltra Amber6051802704567.5 LD40011CUY LD40011DUYAlGaInPUltra Yellow5951802704567.5 LD40011CUG LD40011DUGAlGaInPUltra Green5731802704567.5 LD40011CPG LD40011DPGInGaNPure Green5257201800180450 LD40011CUB LD40011DUBInGaNUltra Blue4701802704567.5 LD40011CUW LD40011DUWSMDUltra White600720150180Unit:nmmcdmcdmcdmcd Package Dimensions

4 Inch 7 Segment Display with 8 LEDs Per Seg with RoHS From Expert Manufacturer

4 Inch 7 Segment Display with 8 LEDs Per Seg with RoHS From Expert ManufacturerApplication

4 Inch 7 Segment Display with 8 LEDs Per Seg with RoHS From Expert Manufacturer4 Inch 7 Segment Display with 8 LEDs Per Seg with RoHS From Expert Manufacturer
https://lightkeyled.en.made-in-china.com/product-group/coWmkijOEUVP/7-Segment-LED-Display-catalog-1.html

4 Inch 7 Segment Display with 8 LEDs Per Seg with RoHS From Expert Manufacturer
4 Inch 7 Segment Display with 8 LEDs Per Seg with RoHS From Expert Manufacturer
4 Inch 7 Segment Display with 8 LEDs Per Seg with RoHS From Expert Manufacturer

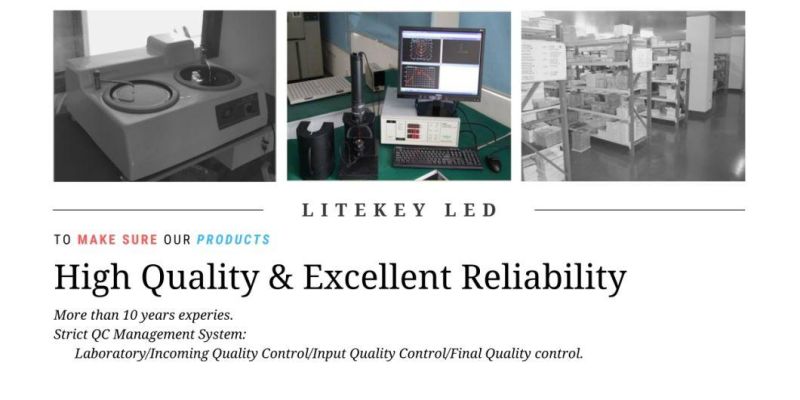

Factory Overview

4 Inch 7 Segment Display with 8 LEDs Per Seg with RoHS From Expert Manufacturer4 Inch 7 Segment Display with 8 LEDs Per Seg with RoHS From Expert Manufacturer


Our Services/Why choose Us

1. Professional service:  replied within 24 hours(at workdays).

2. Various ready moldings of lamp led are available: no need to afford extra fee for moldings.
3. We also can provide customized products, design according to your demand.

4. Reliable and stable quality: 100% testing for each piece. Automatic testing and bin code selection machine.
5. Experience: produce LED components for more than 14 years.
6. Advanced Equipment: ASM automatic production machines(biggest brand in LED automatic machines)
7. Concentration: We focus on LED research and development, production and sales.
