• Model NO.：P1.25 P1.5 P1.8 P2.5 P2.976 P3.91 P4.81
• System Operating Platform：Windows
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide
• IP Rating：IP31
• Certification：CE, RoHS, UL, CCC, ETL
• Brightness：800nits
• LED Lamps：SMD 3 in 1
• Driver IC：Constent Current
• PSU：5V 40A
• Cabinet：Alu
• Refresh Rate：>3840Hz
• Contrast Rate：3000:1
• System：Nova
• Voltage：AC110-240V
• IP Rate：IP31
• Viewing Distance：1-3meters
• Service Solution：Front + Rear Service
• Weight：24kg,M2 (Aluminium)
• Installation：Back Fixed
• Software OS：Windows
• Transport Package：Plywood Cases
• Specification：640x480mm
• Trademark：LEDventure
• Origin：China
• Production Capacity：2000sqm,Month

Item

P1.5 P1.8 P2.5 P3 Indoor LED Video Display Screen Media Wall Mounted for Advertising hot sale

Pixel Pitch

1.5-3mm

Pixel Density(pixels/M2)

109688-422500 pixels

Pixel Configuration

1G1B1B

LED Type

SMD 3 in 1

Module size(mm)

320x160mm (options)

Module Resolution(pixels)

104x72-208x104 pixels

Min.Viewing Distance(m)

1.5-3meters

Brightness(nits)

800

Viewing Angle(degree)

≤140°

Average Power Consumption(W/M2)

400

Scan Mode

Constant current

Protection Level

IP31

Cabinet Size(mm)

640x480mm

Color Temperature

The brightness of R.G.B. is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements

Input Voltage

AC110-240V, 50HZ|60hz

Refresh Rate

> 3840hz

Color

65535 Levels

Horizontal/Vertical viewing angle

<140°

Gray Scale

16 bits

Effective Communication Distance(without relay)

Lifespan

≥100,000 hours

Environment Temperature

Storage: -40°C~+85°C  , Operation: -20 °C~+45°C

Blind Spot Rate

<0.0001(led display industry standard is less than 0.0003)

Control Mode

Video frequency synchronization

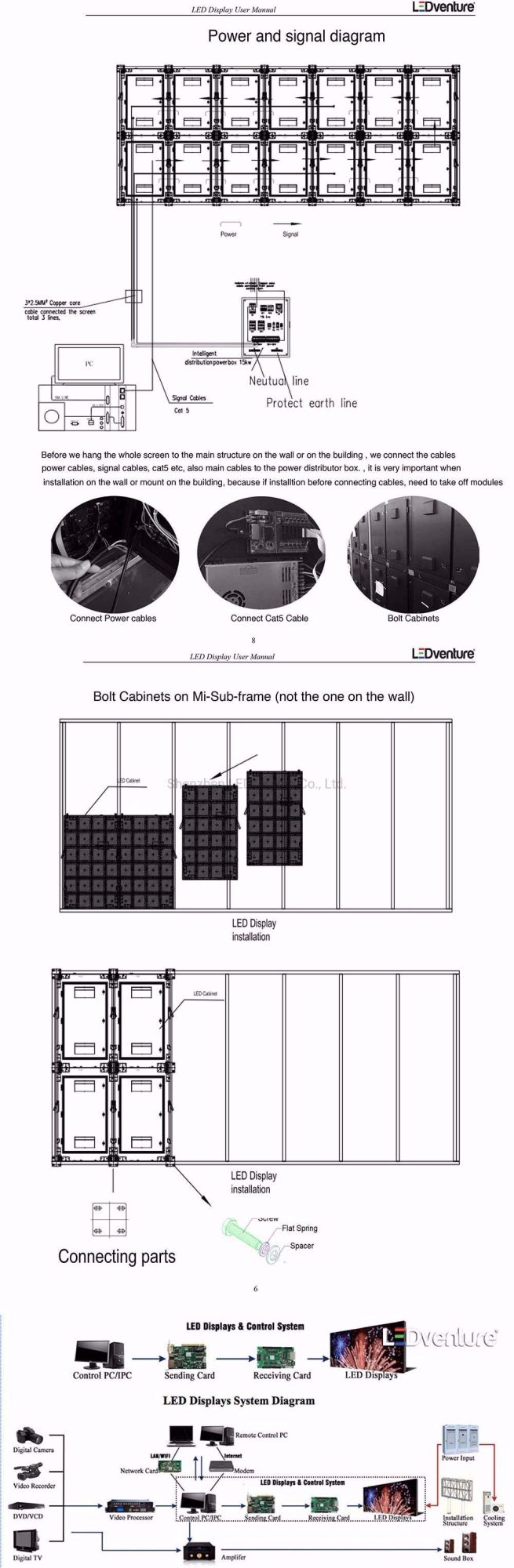

Part 5: Installation methods,  available fixed on the wall, on pillars, standing etc all available, and system hardware included sending cards sending box, processor, receiving cards etc.





Part6: Packing information by plywood cases, packing well and easy to load,


Part7: Certificates.

ALL of our Product passed CE, EMC FCC, UL and other security tests, to ensure to meet most market laws and standard requires, and make sure the quality is top level and stable for many years use.

Part8: About LEDventure.

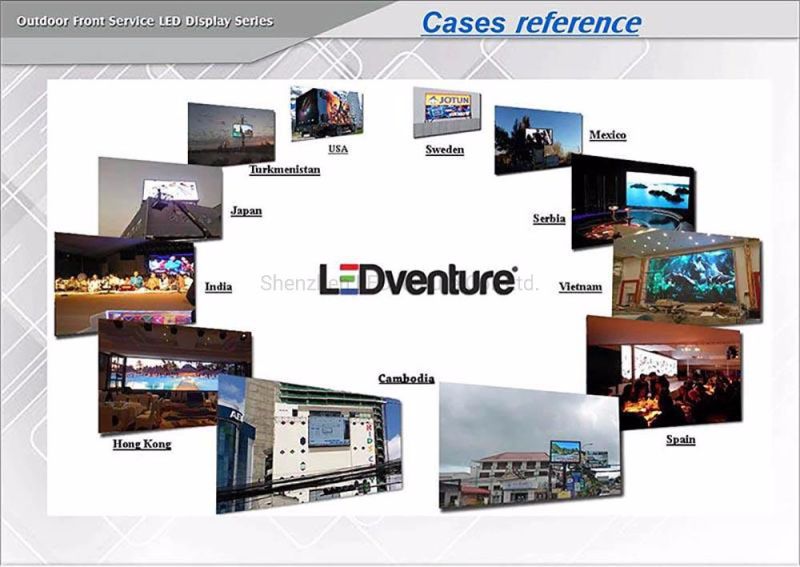

Part9 : LED display screen installation cases.

Most of our led display exported to Europe with high standards, and small percent to USA and Asia,




Address: LEDventure Buliding,Lebao Industrial Park,Fengxin RD,Guangming New District,Shenzhen,China.
